Technisches Datenblatt
Spezifikationen

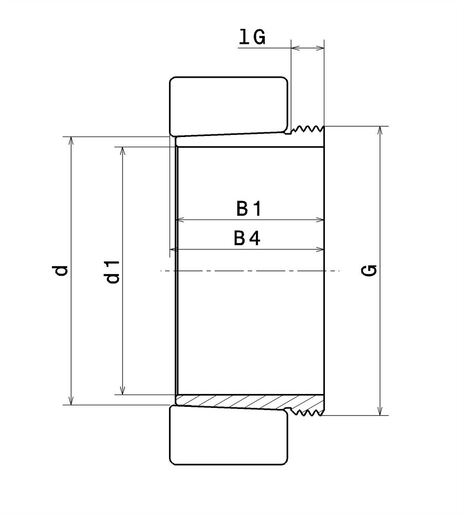

TECHNISCHE EIGENSCHAFTEN | |
|---|---|
| d1 | 55 mm |
| d | 60 mm |
| B1 | 58 mm |
| B4 | 61 mm |
| G | M65X2 |
| IG | 11 mm |
| Designation of the associated nut | KM13 |
| Designation of the associated blocking device | MB11 |
| Designation of the nut | KM11 |
| Associated bearing | 22312, 2312 |
| Designation of the associated hydraulic nut | HMV13 EBF |
| Bohrung | Tapered 1:12 |
| Masse | 0,3 kg |
| Marke | SNR |
