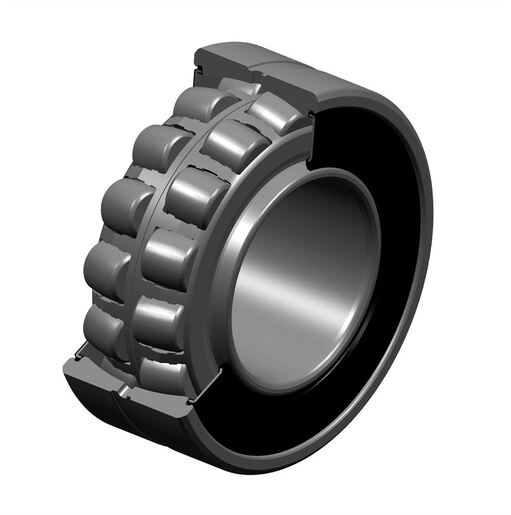

Spherical roller bearing, pressed steel cage, groove and lubrication holes on outer ring, tapered bore 1:12, non ISO width, contact seals on both sides
The spherical roller bearing withstands significant loads and misalignments. This type of roller bearing is well adapted to harsh operating conditions: impacts or vibrations (crushers, vibrating screens, heavy handling, etc.). With the ULTAGE design, NTN EUROPE offers as standard, unsurpassed endurance and longevity.
3D file
Technical datasheet
| PRODUCT DEFINITION | |
|---|---|
| Brand | SNR |
| d - Internal diameter | 35 mm |
| D - External diameter | 72 mm |
| B - Bearing/Inner ring width | 28 mm |

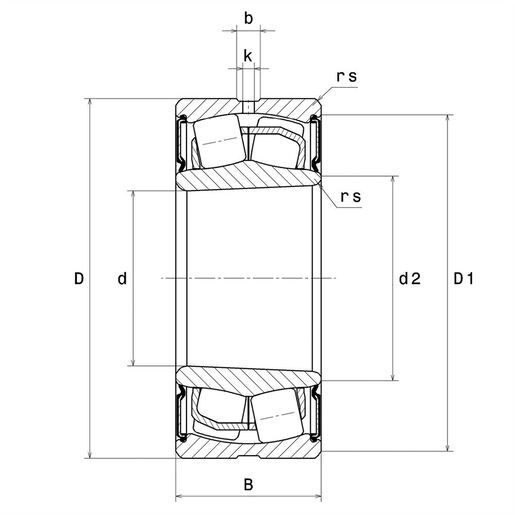

| d2 - External diameter inner ring | 42,8 mm |
| D1 - Inner diameter outer ring | 65,1 mm |
| rs - Min fillet radius | 1,1 mm |
| Number of lubrication holes | 3 |
| b - Groove width | 4,9 mm |
| k - Hole diameter | 2 mm |
| Associated sleeve reference | H2307E |
| Radial clearance class | C3 |
| Mass | 0,494 kg |
| PRODUCT PERFORMANCE | |
|---|---|
| C - Dynamic load | 100 kN |
| C0 - Static load | 92 kN |
| Cu - Fatigue limit load | 11,2 kN |
| e - Coefficient | 0.31 |
| Y0 - Static axial load coefficient | 2.16 |
| Y1 - Lower axial load coefficient | 2.21 |
| Y2 - Upper axial load coefficient | 3.29 |
| Nlim - Mechanical Limit Speed | 2600 tr/min |
| Tmin - Min operating temperature | -20 °C |
| Tmax - Max operating temperature | 120 °C |
| BEARING FREQUENCIES | |
|---|---|
| BPFO - Characteristic outer ring frequency (60 rpm) | 6,676 Hz |
| BPFI - Characteristic inner ring frequency (60 rpm) | 9,324 Hz |
| FTF - Characteristic cage frequency (60 rpm) | 0,417 Hz |
| BSF - Characteristic rolling element frequency (60 rpm) | 5,759 Hz |
| ABUTMENT | |
|---|---|

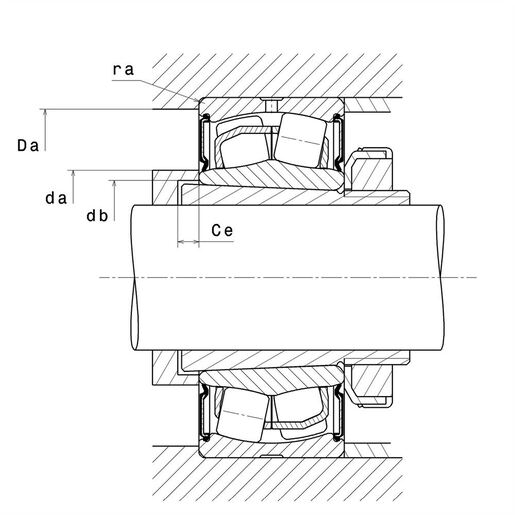

| da max - Max shoulder diameter IR | 42,8 mm |
| da min - Min shoulder diameter IR | 42 mm |
| db - Min diameter for Sleeve | 40 mm |
| Ce - Min length fro Sleeve | 8 mm |
| Da max - Max shoulder diameter OR | 65,1 mm |
| ra max - Max shaft & housing fillet radius | 1 mm |
