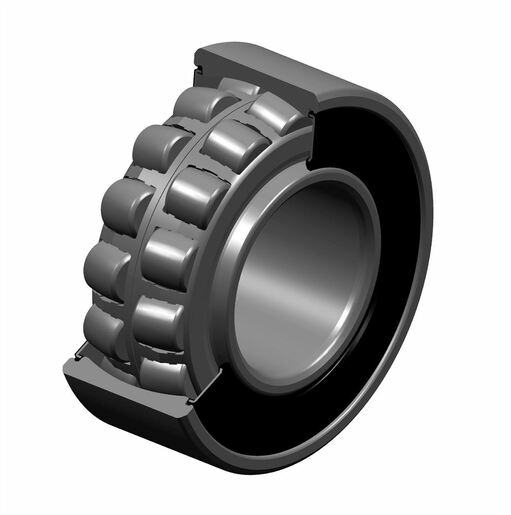

Spherical roller bearing, pressed steel cage, non ISO width, contact seals on both sides
The spherical roller bearing withstands significant loads and misalignments. This type of roller bearing is well adapted to harsh operating conditions: impacts or vibrations (crushers, vibrating screens, heavy handling, etc.). With the ULTAGE design, NTN EUROPE offers as standard, unsurpassed endurance and longevity.
3D file
Technical datasheet

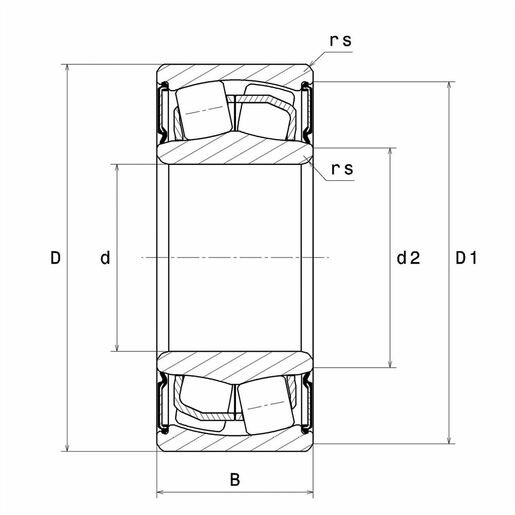

| PRODUCT DEFINITION | |
|---|---|
| Brand | SNR |
| d - Internal diameter | 50 mm |
| D - External diameter | 90 mm |
| B - Bearing/Inner ring width | 28 mm |
| d2 - External diameter inner ring | 57,1 mm |
| D1 - Inner diameter outer ring | 84,2 mm |
| rs - Min fillet radius | 1,1 mm |
| Number of lubrication holes | 0 |
| b - Groove width | 0 mm |
| k - Hole diameter | 0 mm |
| Radial clearance class | C0 |
| Mass | 0,71 kg |
| PRODUCT PERFORMANCE | |
|---|---|
| C - Dynamic load | 130 kN |
| C0 - Static load | 124 kN |
| Cu - Fatigue limit load | 15,1 kN |
| e - Coefficient | 0.24 |
| Y0 - Static axial load coefficient | 2.78 |
| Y1 - Lower axial load coefficient | 2.84 |
| Y2 - Upper axial load coefficient | 4.23 |
| Nlim - Mechanical Limit Speed | 1900 tr/min |
| Tmin - Min operating temperature | -20 °C |
| Tmax - Max operating temperature | 120 °C |
| BEARING FREQUENCIES | |
|---|---|
| BPFO - Characteristic outer ring frequency (60 rpm) | 7,631 Hz |
| BPFI - Characteristic inner ring frequency (60 rpm) | 10,369 Hz |
| FTF - Characteristic cage frequency (60 rpm) | 0,424 Hz |
| BSF - Characteristic rolling element frequency (60 rpm) | 6,342 Hz |

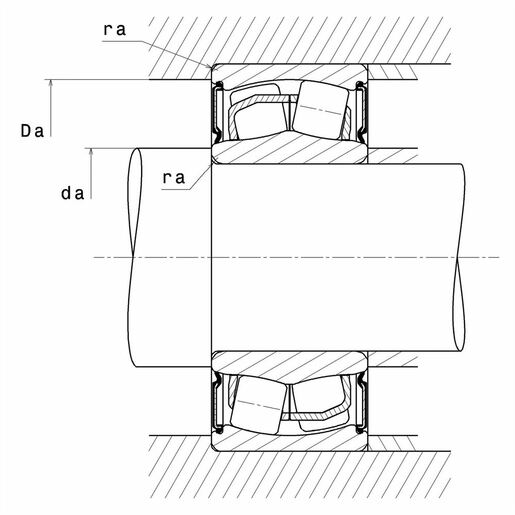

| ABUTMENT | |
|---|---|
| da max - Max shoulder diameter IR | 58,5 mm |
| da min - Min shoulder diameter IR | 57 mm |
| db - Min diameter for Sleeve | 0 mm |
| Da max - Max shoulder diameter OR | 83 mm |
| ra max - Max shaft & housing fillet radius | 1 mm |
