10X22210EAKW33EEC3 - SNR

10X22210EAKW33EEC3

Spherical roller bearing, pressed steel cage, groove and lubrication holes on outer ring, tapered bore 1:12, non ISO width, contact seals on both sides

product label

The spherical roller bearing withstands significant loads and misalignments. This type of roller bearing is well adapted to harsh operating conditions: impacts or vibrations (crushers, vibrating screens, heavy handling, etc.). With the ULTAGE design, NTN-SNR offers as standard, unsurpassed endurance and longevity.

Downloads

CAD file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

PRODUCT DIMENSIONS

Internal diameter d 50 mm
External diameter D 90 mm
Bearing/Inner ring width(B) 28 mm
External diameter inner ring d2 57,1 mm
Inner diameter outer ring D1 82,2 mm
Min fillet radius rs 1,1 mm
Number of lubrication holes 3 or 4
Groove width (b) 5,83 mm
Hole diameter (k) 2,5 mm
Associated sleeve reference H310E
Coef e 0.24
Lower axial load coef (Y1) 2.84
Upper axial load coef (Y2) 4.23
Static axial load coef (Y0) 2.78
Radial clearance class C3
Mass 0,683 kg
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load, C 130 kN
Static load, C0 124 kN
Fatigue limit load, Cu 15,1 kN
Mechanical Limit Speed Nlim 1900 tr/min
Min operating temperature, Tmin -20 °C
Max operating temperature, Tmax 120 °C
Characteristic cage frequency, FTF 0,424 Hz
Characteristic rolling element frequency, BSF 6,342 Hz
Characteristic outer ring frequency, BPF0 7,631 Hz
Characteristic inner ring frequency, BPFI 10,369 Hz

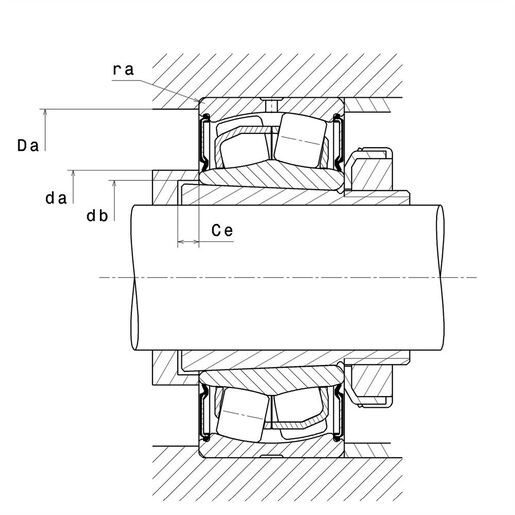

ABUTMENT

Max shoulder diameter IR da max 57,1 mm
Min shoulder diameter IR da min 57 mm
Min diameter for Sleeve db 55 mm
Min length fro Sleeve Ce 4 mm
Max shoulder diameter OR Da max 83 mm
Max shaft & housing fillet radius ra max 1 mm
