11210G15 - SNR

11210G15

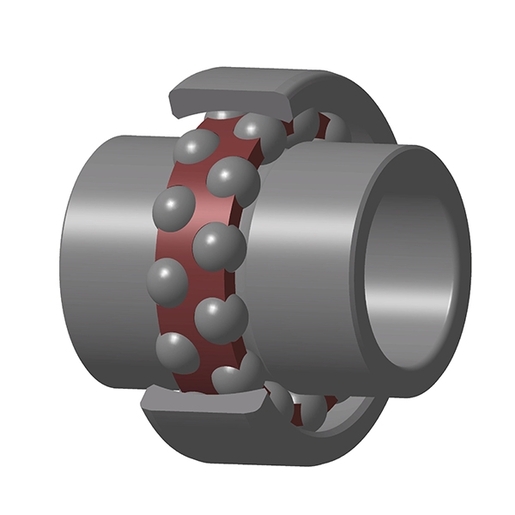

Self-aligning ball bearing with wide inner ring, polyamide cage, open

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us

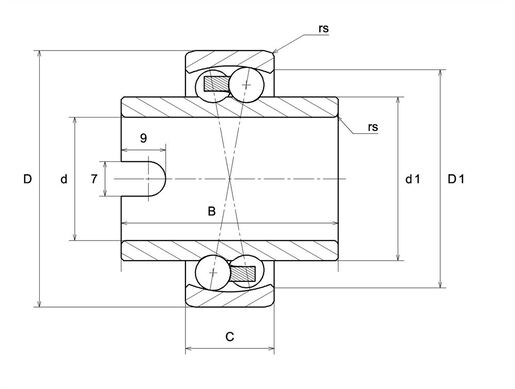

PRODUCT DEFINITION
BrandSNR
d - Internal diameter50 mm
D - External diameter90 mm
B - Bearing/Inner ring width58 mm
C - Outer ring width20 mm
d1 - External diameter inner ring62,7 mm
D1 - Inner diameter outer ring78,8 mm
rs - Min fillet radius1,1 mm
Radial clearance classCN
Precision classP0
Mass0,86 kg
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load22,7 kN
C0 - Static load8,1 kN
Cu - Fatigue limit load0,37 kN
e - Coefficient0.2
Y0 - Static axial load coefficient3.32
Y1 - Lower axial load coefficient3.17
Y2 - Upper axial load coefficient4.9
Nref - Reference thermal speed7600 tr/min
Nlim - Mechanical Limit Speed8600 tr/min
Tmin - Min operating temperature-20 °C
Tmax - Max operating temperature120 °C
BEARING FREQUENCIES
BPFO - Characteristic outer ring frequency (60 rpm)7,776 Hz
BPFI - Characteristic inner ring frequency (60 rpm)10,224 Hz
FTF - Characteristic cage frequency (60 rpm)0,432 Hz
BSF - Characteristic rolling element frequency (60 rpm)7,152 Hz

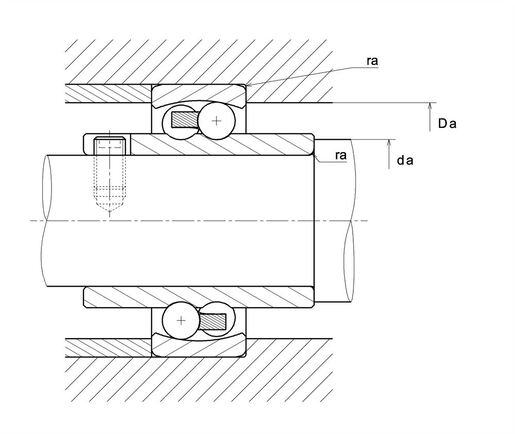

ABUTMENT
da min - Min shoulder diameter IR56,5 mm
Da max - Max shoulder diameter OR83,5 mm
ra max - Max shaft & housing fillet radius1 mm
Product classification image
