16011 - NTN

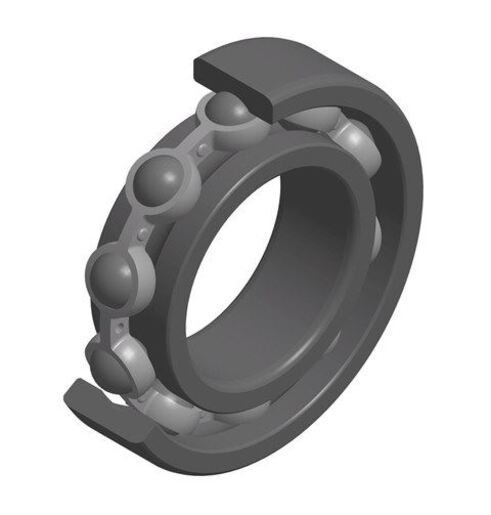

Deep groove ball bearing, radial contact, pressed steel cage, open

The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options: sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.


Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us

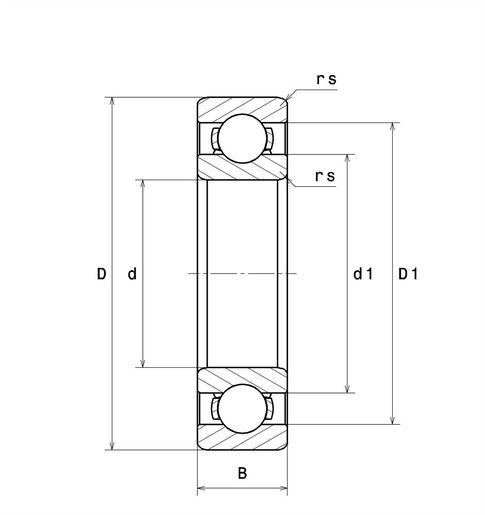

Internal diameter d 55 mm
External diameter D 90 mm
Bearing/Inner ring width(B) 11 mm
Min fillet radius rs 0,6 mm
Radial clearance class CN
Mass 0,258 kg
Brand NTN
Product classification image


Dynamic load, C 20,6 kN
Static load, C0 15,3 kN
Fatigue limit load, Cu 1,06 kN
Coefficient f0 16.2
Nlim (oil) 9000 tr/min
Nlim (grease) 7700 tr/min
Min operating temperature, Tmin -40 °C
Max operating temperature, Tmax 120 °C
Characteristic cage frequency, FTF 0,445 Hz
Characteristic rolling element frequency, BSF 9,024 Hz
Characteristic outer ring frequency, BPF0 6,679 Hz
Characteristic inner ring frequency, BPFI 8,321 Hz

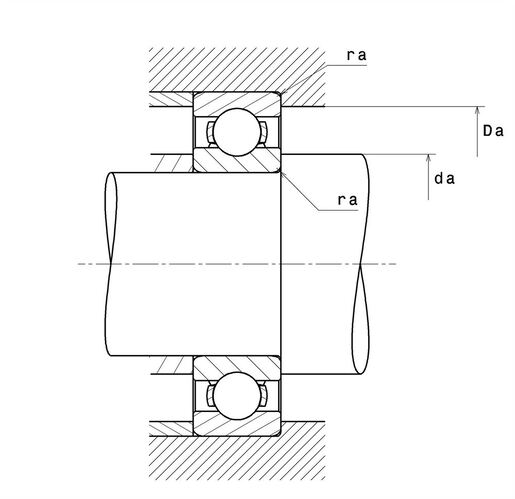

Min shoulder diameter IR da min 59 mm
Max shoulder diameter OR Da max 86 mm
Max shaft & housing fillet radius ra max 0,6 mm
