1R120X130X40 - NTN

1R120X130X40

Needle roller bearing, inner ring

Downloads

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

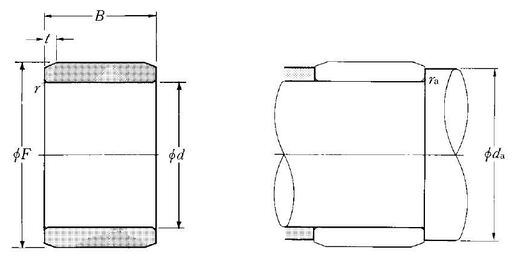

PRODUCT DIMENSIONS

Internal diameter d 120 mm
Bearing/Inner ring width(B) 40 mm
Under roller diameter F 130 mm
Min fillet radius rs 1,1 mm
Lubrication hole on inner ring No
IR chamfer length (t) 2,5 mm
Precision class P0
Mass 0,59 kg
Brand NTN

ABUTMENT

Min shoulder diameter IR da min 126,5 mm
Max shaft & housing fillet radius (ras max) 1 mm
