1R12X16X12 - NTN

1R12X16X12

Needle roller bearing, inner ring

Downloads

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

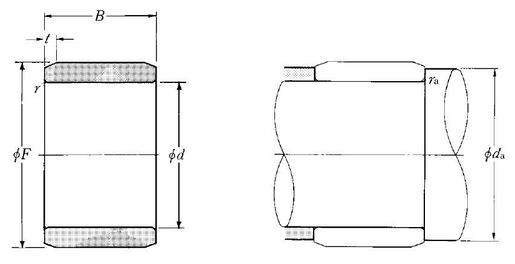

PRODUCT DIMENSIONS

Internal diameter d 12 mm
Bearing/Inner ring width(B) 12 mm
Under roller diameter F 16 mm
Min fillet radius rs 0,3 mm
Lubrication hole on inner ring No
IR chamfer length (t) 1,5 mm
Precision class P0
Mass 0,008 kg
Brand NTN

ABUTMENT

Min shoulder diameter IR da min 14 mm
Max shaft & housing fillet radius (ras max) 0,3 mm
