1R60X68X35 - NTN

1R60X68X35

Needle roller bearing, inner ring

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

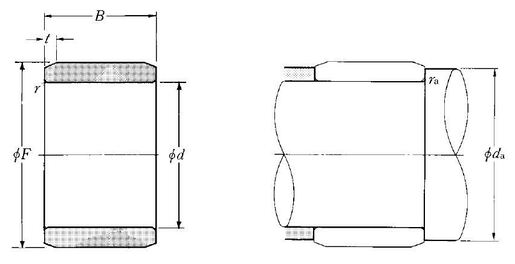

PRODUCT DEFINITION

d - Internal diameter 60 mm
B - Bearing/Inner ring width 35 mm
F - Under roller diameter 68 mm
rs - Min fillet radius 0,6 mm
Lubrication hole on inner ring No
t - IR chamfer length 2,2 mm
Precision class P0
Mass 0,213 kg
Brand NTN

ABUTMENT

da min - Min shoulder diameter IR 64 mm
ras max - Max shaft & housing fillet radius 0,6 mm
