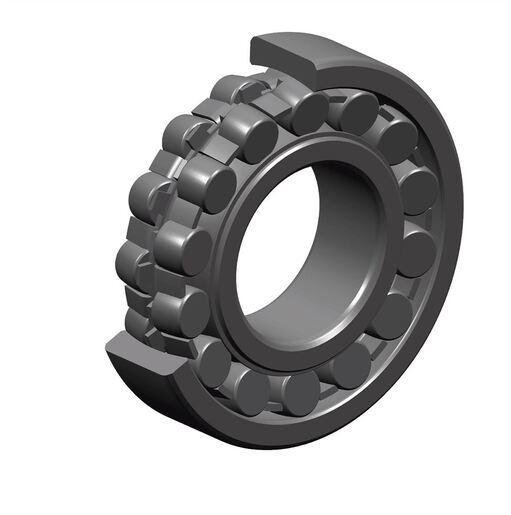

Spherical roller bearing, pressed steel cage
The spherical roller bearing withstands significant loads and misalignments. This type of roller bearing is well adapted to harsh operating conditions: impacts or vibrations (crushers, vibrating screens, heavy handling, etc.). With the ULTAGE design, NTN-SNR offers as standard, unsurpassed endurance and longevity.
CAD file
Technical datasheet
Specs

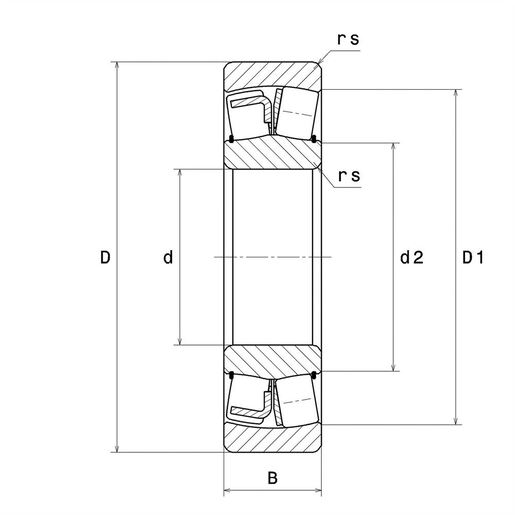

PRODUCT DIMENSIONS | |
|---|---|
| Internal diameter d | 40 mm |
| External diameter D | 90 mm |
| Bearing/Inner ring width(B) | 23 mm |
| External diameter inner ring d2 | 53,5 mm |
| Inner diameter outer ring D1 | 75,4 mm |
| Min fillet radius rs | 1,5 mm |
| Number of lubrication holes | 0 |
| Groove width (b) | 0 mm |
| Coef e | 0.26 |
| Lower axial load coef (Y1) | 2.55 |
| Upper axial load coef (Y2) | 3.8 |
| Static axial load coef (Y0) | 2.5 |
| Radial clearance class | CN |
| Mass | 0,715 kg |
| Brand | SNR |
PRODUCT PERFORMANCE | |
|---|---|
| Dynamic load, C | 97,7 kN |
| Static load, C0 | 86,7 kN |
| Fatigue limit load, Cu | 10,6 kN |
| Reference thermal speed (Nref) | 6400 tr/min |
| Mechanical Limit Speed Nlim | 9300 tr/min |
| Min operating temperature, Tmin | -40 °C |
| Max operating temperature, Tmax | 200 °C |
| Characteristic cage frequency, FTF | 0,414 Hz |
| Characteristic rolling element frequency, BSF | 5,561 Hz |
| Characteristic outer ring frequency, BPF0 | 5,797 Hz |
| Characteristic inner ring frequency, BPFI | 8,203 Hz |

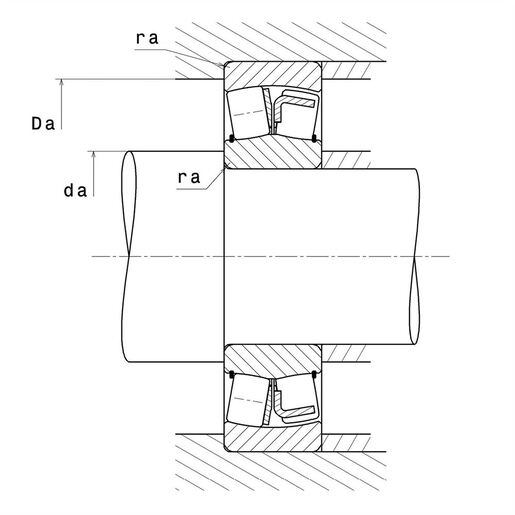

ABUTMENT | |
|---|---|
| Max shoulder diameter IR da max | 0 mm |
| Min shoulder diameter IR da min | 49 mm |
| Max shoulder diameter OR Da max | 81 mm |
| Max shaft & housing fillet radius ra max | 1,5 mm |
