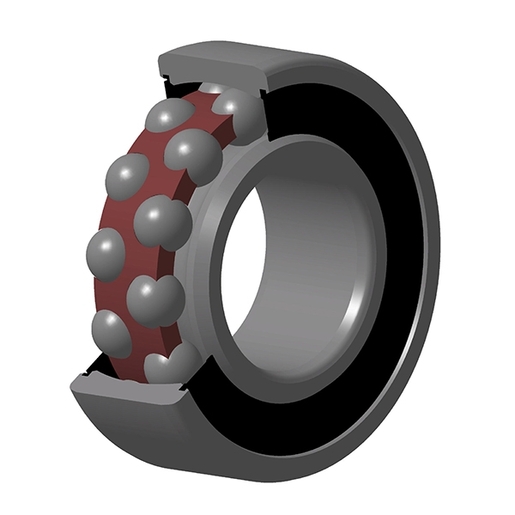

Self-aligning ball bearing, polyamide cage, friction seals on both sides
CAD file
Technical datasheet
Specs

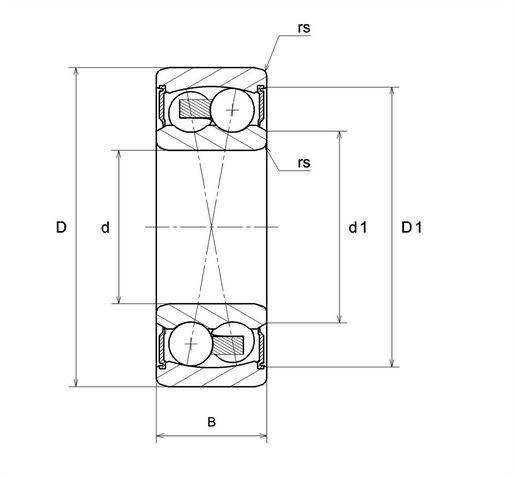

PRODUCT DIMENSIONS | |
|---|---|
| Internal diameter d | 55 mm |
| External diameter D | 100 mm |
| Bearing/Inner ring width(B) | 25 mm |
| External diameter inner ring d1 | 67,3 mm |
| Inner diameter outer ring D1 | 88,8 mm |
| Min fillet radius rs | 1,5 mm |
| Coef e | 0.19 |
| Lower axial load coef (Y1) | 3.31 |
| Upper axial load coef (Y2) | 5.12 |
| Static axial load coef (Y0) | 3.47 |
| Radial clearance class | CN |
| Precision class | P0 |
| Mass | 0,82 kg |
| Brand | SNR |
PRODUCT PERFORMANCE | |
|---|---|
| Dynamic load, C | 26,8 kN |
| Static load, C0 | 10 kN |
| Fatigue limit load, Cu | 0,45 kN |
| Mechanical Limit Speed Nlim | 3600 tr/min |
| Min operating temperature, Tmin | -20 °C |
| Max operating temperature, Tmax | 120 °C |
| Characteristic cage frequency, FTF | 0,434 Hz |
| Characteristic rolling element frequency, BSF | 7,401 Hz |
| Characteristic outer ring frequency, BPF0 | 8,249 Hz |
| Characteristic inner ring frequency, BPFI | 10,751 Hz |

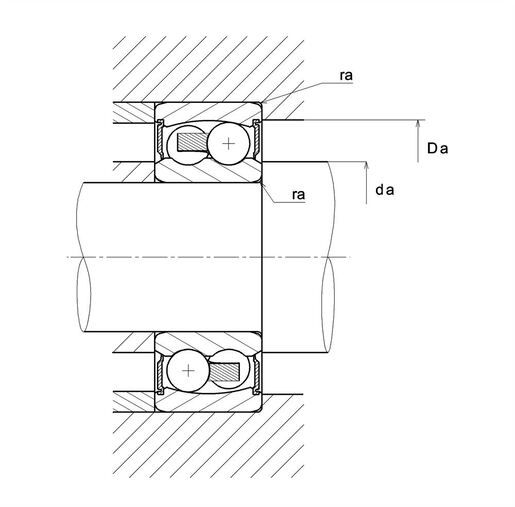

ABUTMENT | |
|---|---|
| Min shoulder diameter IR da min | 63 mm |
| Max shoulder diameter IR da max | 67,3 mm |
| Max shoulder diameter OR Da max | 92 mm |
| Max shaft & housing fillet radius ra max | 1,5 mm |
