Spherical roller bearing, polyamide cage, groove and lubrication holes on outer ring, tapered bore 1:12
The spherical roller bearing withstands significant loads and misalignments. This type of roller bearing is well adapted to harsh operating conditions: impacts or vibrations (crushers, vibrating screens, heavy handling, etc.). With the ULTAGE design, NTN-SNR offers as standard, unsurpassed endurance and longevity.
CAD file
Technical datasheet
Specs

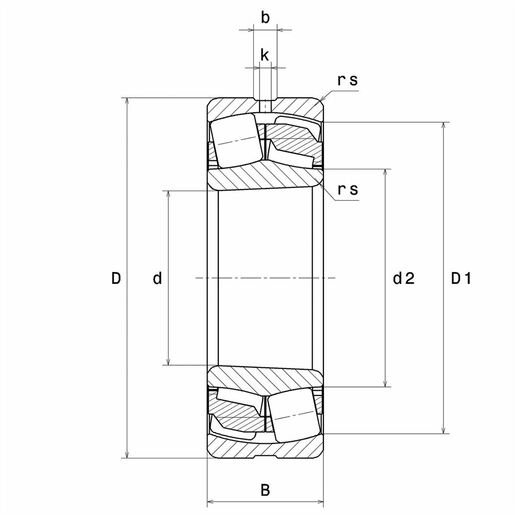

PRODUCT DIMENSIONS | |
|---|---|
| Internal diameter d | 55 mm |
| External diameter D | 100 mm |
| Bearing/Inner ring width(B) | 25 mm |
| External diameter inner ring d2 | 66 mm |
| Inner diameter outer ring D1 | 89,7 mm |
| Min fillet radius rs | 1,5 mm |
| Number of lubrication holes | 3 or 4 |
| Groove width (b) | 6,35 mm |
| Hole diameter (k) | 3 mm |
| Associated sleeve reference | H311 |
| Coef e | 0.23 |
| Lower axial load coef (Y1) | 2.95 |
| Upper axial load coef (Y2) | 4.39 |
| Static axial load coef (Y0) | 2.89 |
| Radial clearance class | CN |
| Mass | 0,823 kg |
| Brand | SNR |
PRODUCT PERFORMANCE | |
|---|---|
| Dynamic load, C | 155 kN |
| Static load, C0 | 148 kN |
| Fatigue limit load, Cu | 18 kN |
| Reference thermal speed (Nref) | 6100 tr/min |
| Mechanical Limit Speed Nlim | 8200 tr/min |
| Min operating temperature, Tmin | -20 °C |
| Max operating temperature, Tmax | 120 °C |
| Characteristic cage frequency, FTF | 0,423 Hz |
| Characteristic rolling element frequency, BSF | 6,287 Hz |
| Characteristic outer ring frequency, BPF0 | 7,618 Hz |
| Characteristic inner ring frequency, BPFI | 10,382 Hz |

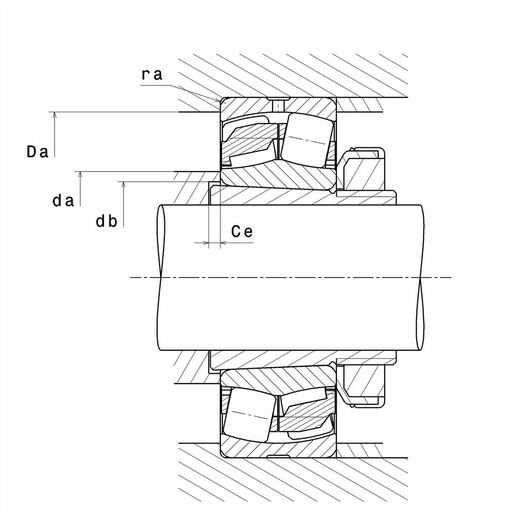

ABUTMENT | |
|---|---|
| Max shoulder diameter IR da max | 0 mm |
| Min shoulder diameter IR da min | 64 mm |
| Min diameter for Sleeve db | 60 mm |
| Min length fro Sleeve Ce | 10 mm |
| Max shoulder diameter OR Da max | 91 mm |
| Max shaft & housing fillet radius ra max | 1,5 mm |
