22213EAKW33ZZ - SNR


product labelproduct label

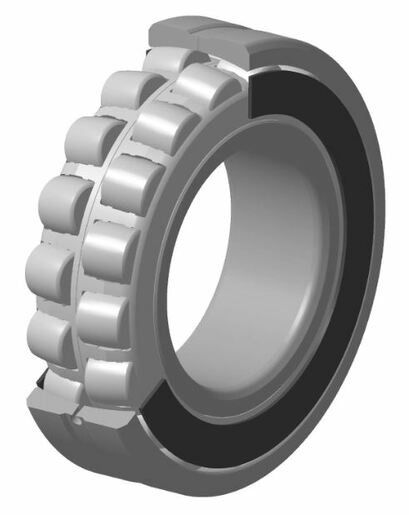

The spherical roller bearing withstands significant loads and misalignments. This type of roller bearing is well adapted to harsh operating conditions: impacts or vibrations (crushers, vibrating screens, heavy handling, etc.). With the ULTAGE design, NTN EUROPE offers as standard, unsurpassed endurance and longevity.


3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us

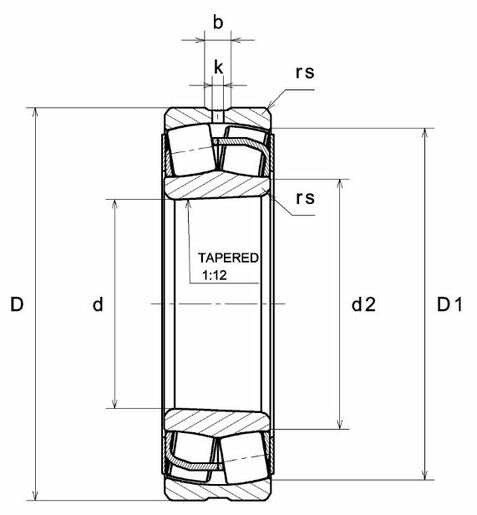

d - Internal diameter65 mm
D - External diameter120 mm
B - Bearing/Inner ring width31 mm
d2 - External diameter inner ring78,2 mm
D1 - Inner diameter outer ring107 mm
rs - Min fillet radius1,5 mm
Number of lubrication holes3
b - Groove width7,83 mm
k - Hole diameter3,5 mm
Associated sleeve referenceH313
Radial clearance classCN
Mass1,54 kg
Product classification image
C - Dynamic load226 kN
C0 - Static load224 kN
Cu - Fatigue limit load27,3 kN
e - Coefficient0.24
Y0 - Static axial load coefficient2.73
Y1 - Lower axial load coefficient2.79
Y2 - Upper axial load coefficient4.15
Nref - Reference thermal speed5300 tr/min
Nlim - Mechanical Limit Speed6900 tr/min
Tmin - Min operating temperature-40 °C
Tmax - Max operating temperature200 °C
BPFO - Characteristic outer ring frequency (60 rpm)7,596 Hz
BPFI - Characteristic inner ring frequency (60 rpm)10,404 Hz
FTF - Characteristic cage frequency (60 rpm)0,422 Hz
BSF - Characteristic rolling element frequency (60 rpm)6,175 Hz

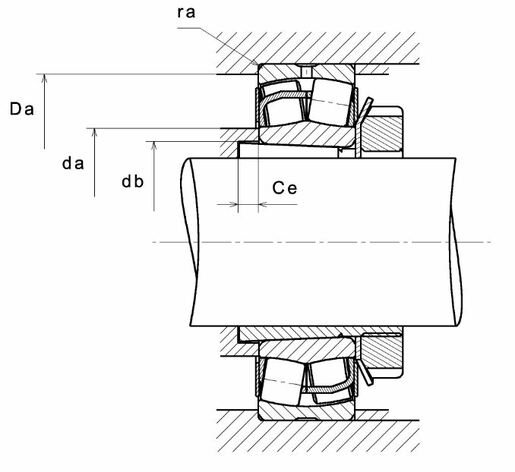

da max - Max shoulder diameter IR78,2 mm
da min - Min shoulder diameter IR74 mm
db - Min diameter for Sleeve70 mm
Ce - Min length fro Sleeve8 mm
Da max - Max shoulder diameter OR111 mm
ra max - Max shaft & housing fillet radius1,5 mm
Product classification image
Calcul factors image
