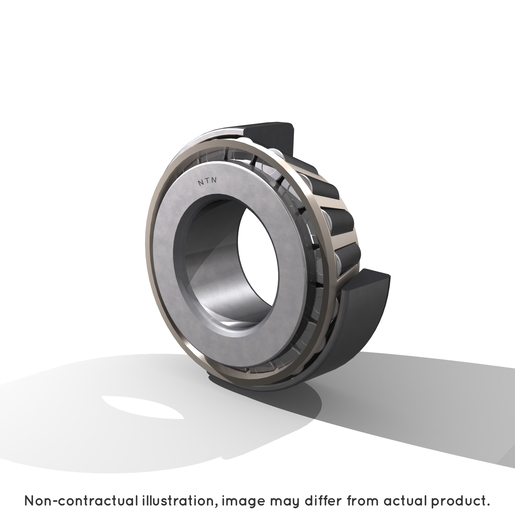

3D file | PRODUCT DEFINITION | | Brand | NTN |
| d - Internal diameter | 130 mm |
| D - External diameter | 210 mm |
| B - Bearing/Inner ring width | 80 mm |
| C - Outer ring width | 64 mm |
| a - Charge load application point | 79,5 mm |
| Mass | 9,4 kg |
| PRODUCT PERFORMANCE | | C - Dynamic load | 455 kN |
| C0 - Static load | 675 kN |
| e - Coefficient | 0.37 |
| Y0 - Static axial load coefficient | 1.76 |
| Y2 - Upper axial load coefficient | 2.69 |
| Nlim - Oil lubrication limit speed | 1800 tr/min |
| Nlim - Grease lubrication limit speed | 1400 tr/min |
| Tmin - Min operating temperature | -40 °C |
| Tmax - Max operating temperature | 120 °C |
| ABUTMENT | | Db min - Min OR shoulder diameter | 199,5 mm |
| ra max - Max fillet radius | 2 mm |
| r1a - Max fillet radius | 0,6 mm |
