6002NR

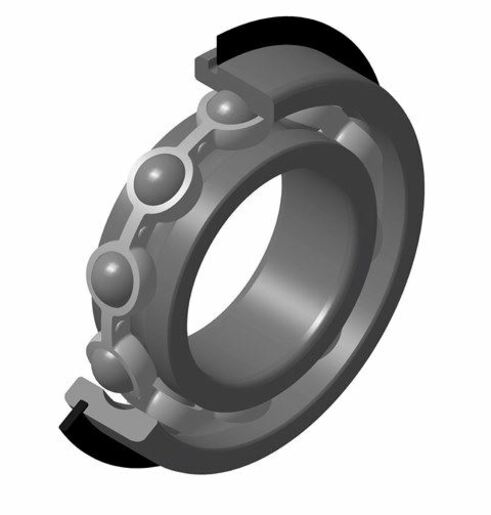

Deep groove ball bearing, radial contact, pressed steel cage, snap ring & groove on outer diameter, open

The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options: sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

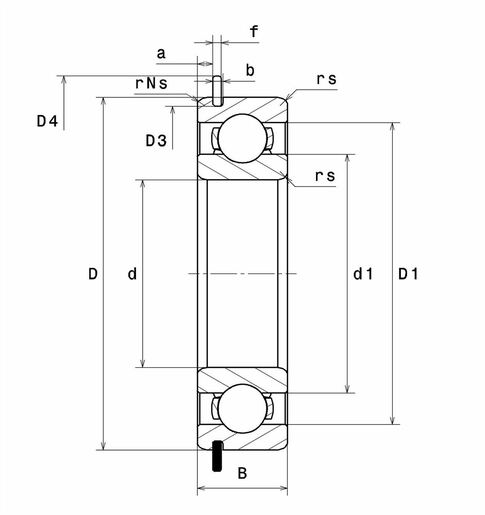

PRODUCT DEFINITION

d - Internal diameter 15 mm
D - External diameter 32 mm
B - Bearing/Inner ring width 9 mm
a min - Min position Groove 1,9 mm
a max - Max position groove 2,06 mm
Ca min - Mini segment position 3,02 mm
Ca max - Max segment position 3,18 mm
rs - Min fillet radius 0,3 mm
rNs - Min fillet radius 0,3 mm
D3 - Max bottom groove diameter 30,15 mm
b min - Min groove width 1,35 mm
b max - Max groove width 1,65 mm
r0 max - Max bottom groove radius 0,4 mm
D4 max - Max outer diameter of assembled stop ring 36,7 mm
f - Stop ring thickness 1,12 mm
Snap ring reference R32
Radial clearance class CN
Mass 0,03 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load 6,2 kN
C0 - Static load 2,84 kN
Cu - Fatigue limit load 0,199 kN
f0 - Coefficient 13.9
Nlim - Oil lubrication limit speed 26000 tr/min
Nlim - Grease lubrication limit speed 22000 tr/min
Tmin - Min operating temperature -40 °C
Tmax - Max operating temperature 120 °C

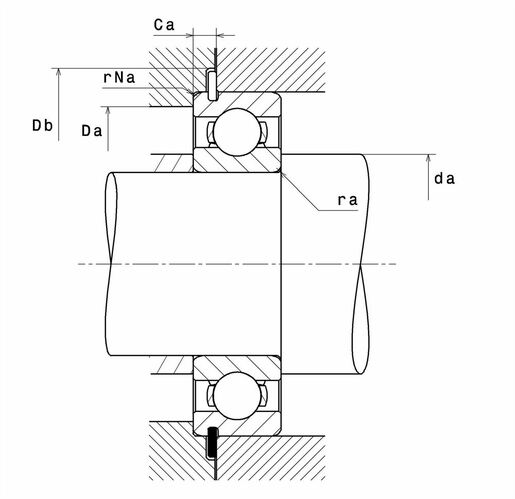

ABUTMENT

da min - Min shoulder diameter IR 17 mm
Da max - Max shoulder diameter OR 30 mm
ra max - Max shaft & housing fillet radius 0,3 mm
rNa max - Max fillet radius on segment side 0,3 mm
Db min - Min stop ring position diameter 37,5 mm
Product classification image
Calcul factors image
