6007LLUCM/5K - NTN

6007LLUCM/5K

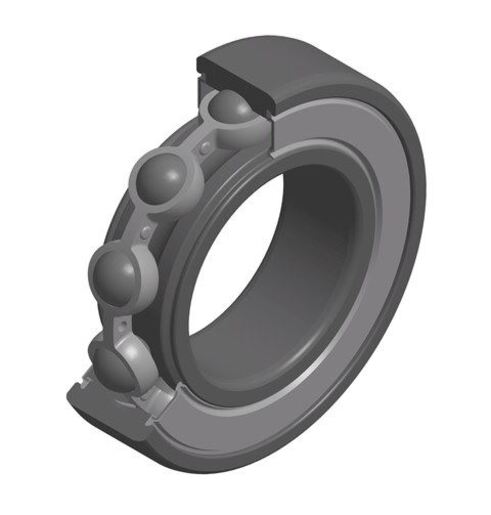

Deep groove ball bearing, radial contact, pressed steel cage, contact seals on both sides

The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options: sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.

Downloads

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

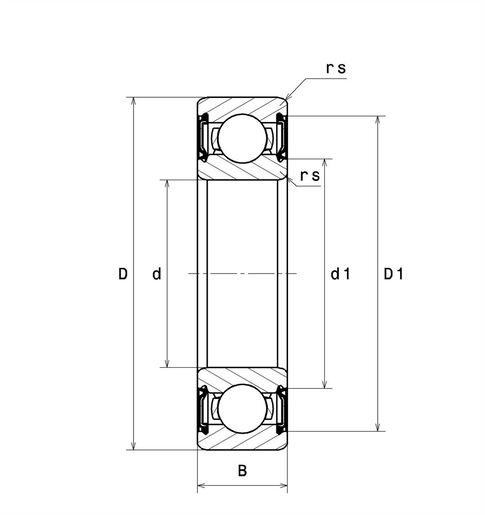

PRODUCT DIMENSIONS

Internal diameter d 35 mm
External diameter D 62 mm
Bearing/Inner ring width(B) 14 mm
Min fillet radius rs 1 mm
Radial clearance class CM
Mass 0,155 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Dynamic load, C 17,7 kN
Static load, C0 10,3 kN
Fatigue limit load, Cu 0,805 kN
Coefficient f0 14.8
Nlim (grease) 6800 tr/min
Min operating temperature, Tmin -25 °C
Max operating temperature, Tmax 110 °C
Characteristic cage frequency, FTF 0,418 Hz
Characteristic rolling element frequency, BSF 5,946 Hz
Characteristic outer ring frequency, BPF0 4,6 Hz
Characteristic inner ring frequency, BPFI 6,4 Hz

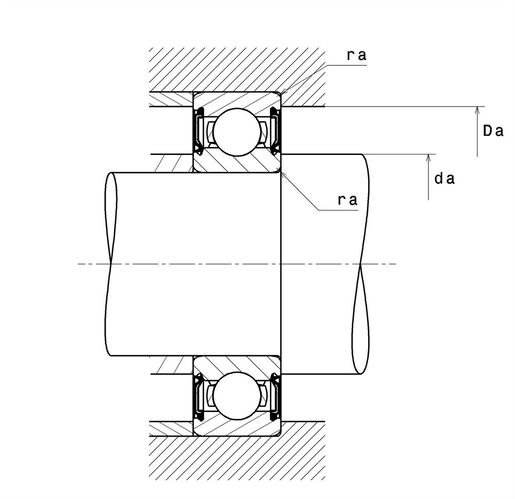

ABUTMENT

Min shoulder diameter IR da min 40 mm
Max shoulder diameter IR da max 42 mm
Max shoulder diameter OR Da max 57 mm
Max shaft & housing fillet radius ra max 1 mm
Product classification image
Calcul factors image
