6014EEC3 - SNR

6014EEC3

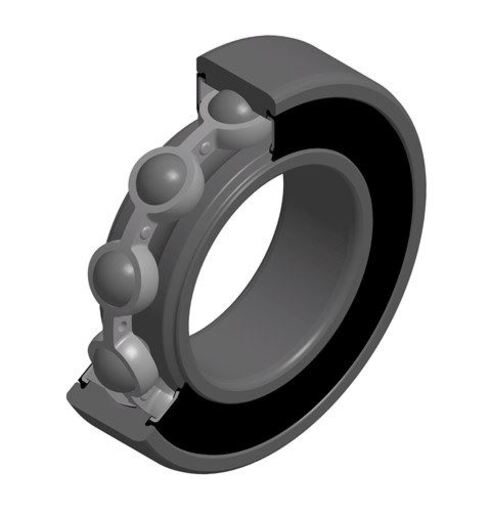

Deep groove ball bearing, radial contact, pressed steel cage, contact seals on both sides

The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options: sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.

Downloads

CAD file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

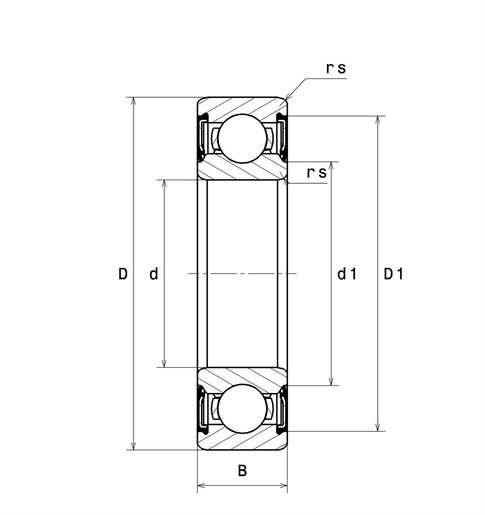

PRODUCT DIMENSIONS

Internal diameter (d) 70 mm
External diameter (D) 110 mm
Bearing/Inner ring width (B) 20 mm
External diameter inner ring d1 78,7 mm
Inner diameter outer ring (D1) 100,8 mm
Min fillet radius (rs) 1,1 mm
Radial clearance class C3
Mass 0,61 kg
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load (C) 37 kN
Static load (C0) 31 kN
Fatigue limit load (Cu) 1,41 kN
Coefficient f0 15.6
Mechanical Limit Speed (Nlim) 3600 tr/min
Min operating temperature (Tmin) -30 °C
Max operating temperature (Tmax) 120 °C

ABUTMENT

Min shoulder diameter IR (da min) 76,5 mm
Max shoulder diameter IR (da max) 78,7 mm
Max shoulder diameter OR (Da max) 103,5 mm
Max shaft & housing fillet radius (ra max) 1 mm
Product classification image
Calcul factors image
