6016ZC3 - NTN

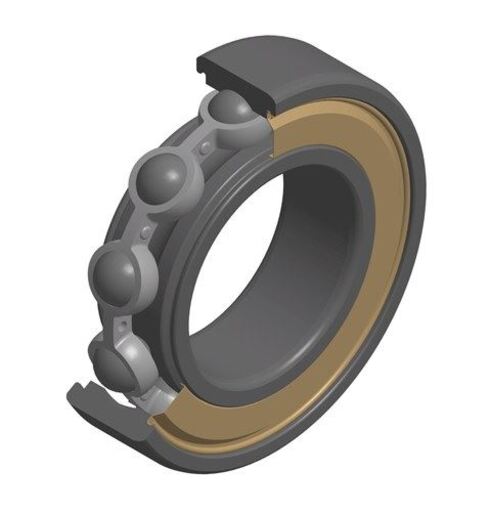

Deep groove ball bearing, radial contact, pressed steel cage, shield on one side

The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options: sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.


3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us

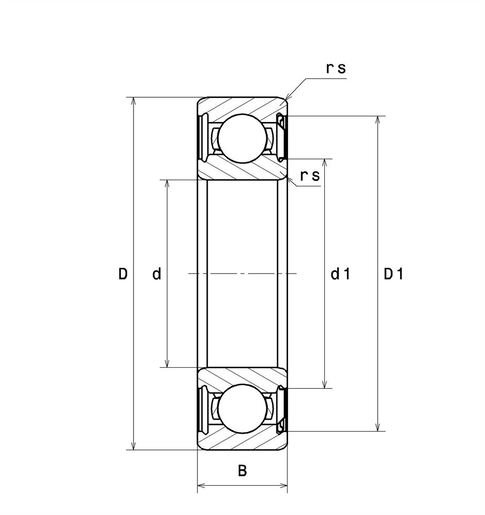

d - Internal diameter 80 mm
D - External diameter 125 mm
B - Bearing/Inner ring width 22 mm
rs - Min fillet radius 1,1 mm
Radial clearance class C3
Mass 0,854 kg
Brand NTN
Product classification image


C - Dynamic load 53 kN
C0 - Static load 40 kN
Cu - Fatigue limit load 2,91 kN
f0 - Coefficient 15.6
Nlim - Oil lubrication limit speed 6200 tr/min
Nlim - Grease lubrication limit speed 5300 tr/min
Tmin - Min operating temperature -40 °C
Tmax - Max operating temperature 120 °C

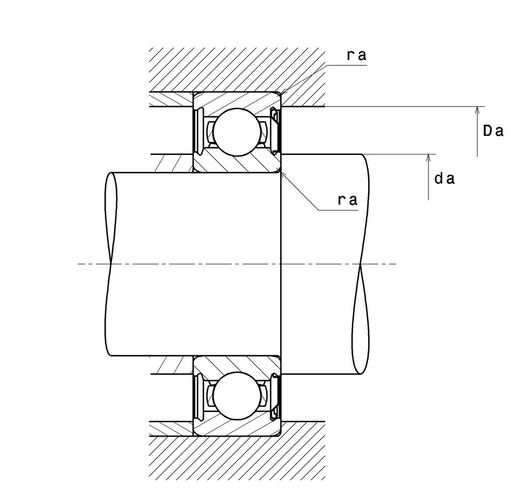

da min - Min shoulder diameter IR 86,5 mm
Da max - Max shoulder diameter OR 118,5 mm
ra max - Max shaft & housing fillet radius 1 mm
Product classification image
Calcul factors image
