6017LLUCM/5K - NTN


Deep groove ball bearing, radial contact, pressed steel cage, contact seal on one side

The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options: sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.


3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us

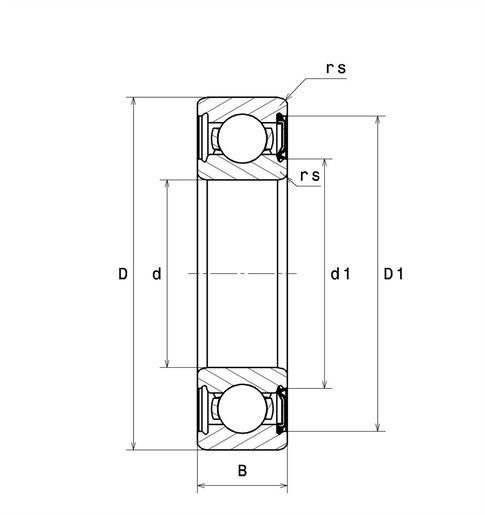

d - Internal diameter 85 mm
D - External diameter 130 mm
B - Bearing/Inner ring width 22 mm
rs - Min fillet radius 1,1 mm
Radial clearance class CM
Mass 0,89 kg
Brand NTN
Product classification image


C - Dynamic load 55 kN
C0 - Static load 43 kN
Cu - Fatigue limit load 3 kN
f0 - Coefficient 15.8
Nlim - Grease lubrication limit speed 2900 tr/min
Tmin - Min operating temperature -25 °C
Tmax - Max operating temperature 110 °C

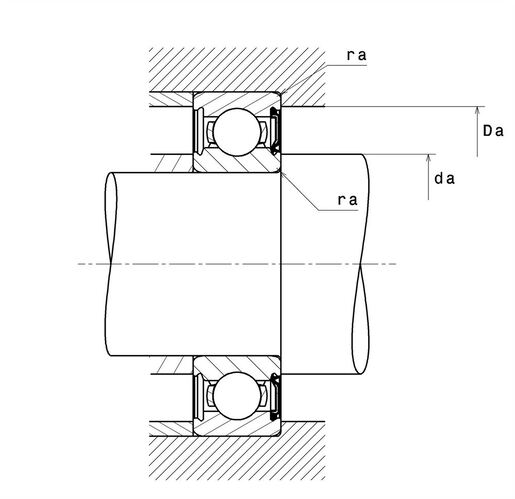

da min - Min shoulder diameter IR 91,5 mm
da max - Max shoulder diameter IR 97 mm
Da max - Max shoulder diameter OR 123,5 mm
ra max - Max shaft & housing fillet radius 1 mm
Product classification image
Calcul factors image
