6017ZNR - NTN

6017ZNR

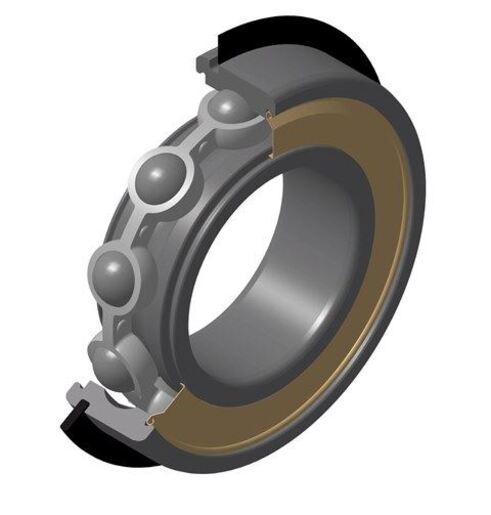

Deep groove ball bearing, radial contact, pressed steel cage, snap ring & groove on outer diameter, shield on one side

The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options: sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

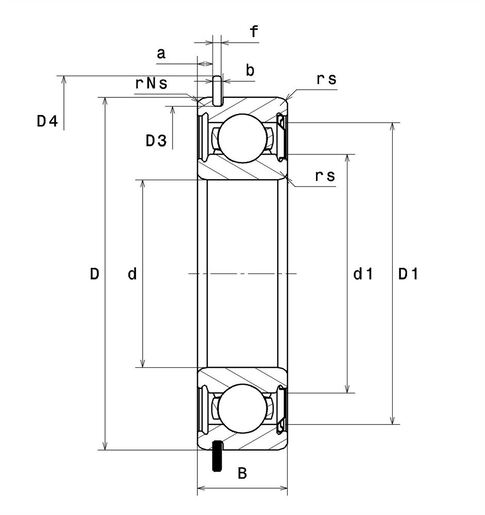

PRODUCT DEFINITION

d - Internal diameter 85 mm
D - External diameter 130 mm
B - Bearing/Inner ring width 22 mm
a min - Min position Groove 2,67 mm
a max - Max position groove 2,87 mm
Ca min - Mini segment position 5,39 mm
Ca max - Max segment position 5,69 mm
rs - Min fillet radius 1,1 mm
rNs - Min fillet radius 0,5 mm
D3 - Max bottom groove diameter 125,22 mm
b min - Min groove width 3,1 mm
b max - Max groove width 3,4 mm
r0 max - Max bottom groove radius 0,6 mm
D4 max - Max outer diameter of assembled stop ring 139,7 mm
f - Stop ring thickness 2,82 mm
Snap ring reference R130
Radial clearance class CN
Mass 0,89 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load 55 kN
C0 - Static load 43 kN
Cu - Fatigue limit load 3 kN
f0 - Coefficient 15.8
Nlim - Oil lubrication limit speed 5900 tr/min
Nlim - Grease lubrication limit speed 5000 tr/min
Tmin - Min operating temperature -40 °C
Tmax - Max operating temperature 120 °C

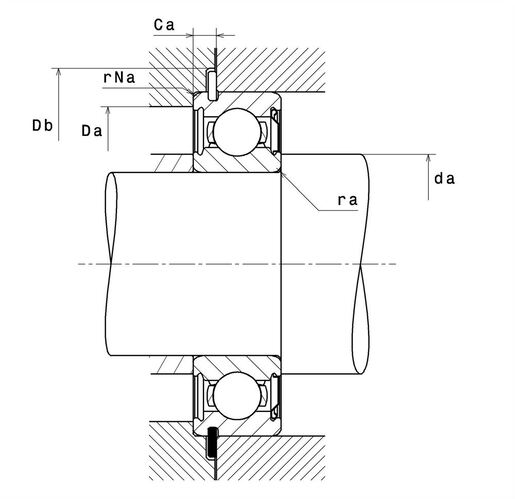

ABUTMENT

da min - Min shoulder diameter IR 91,5 mm
Da max - Max shoulder diameter OR 123,5 mm
ra max - Max shaft & housing fillet radius 1 mm
rNa max - Max fillet radius on segment side 0,5 mm
Db min - Min stop ring position diameter 141,5 mm
Product classification image
Calcul factors image
