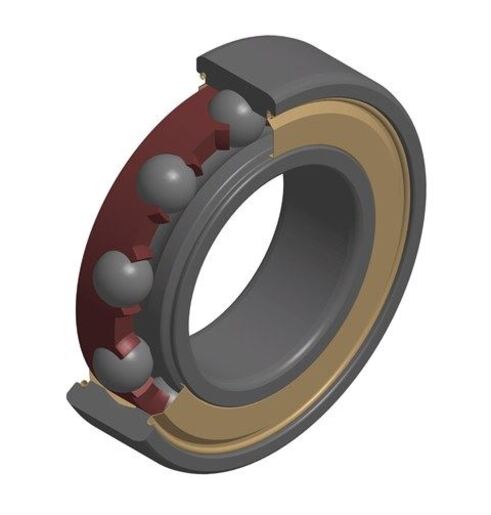

TOPLINE deep groove ball bearing, radial contact, pressed polyamide cage, shields on both sides, for high speed applications
The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options : sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.

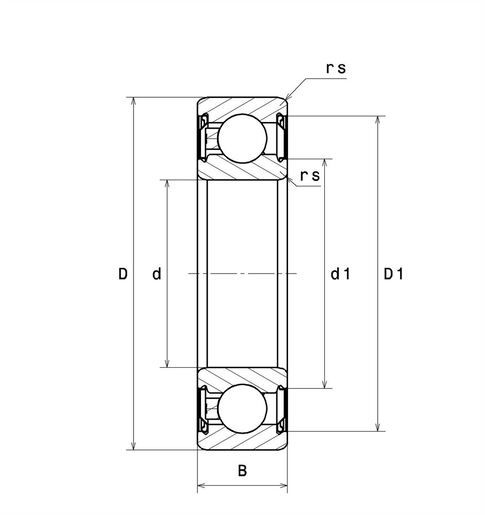

Log in To add this product to your basket Documentation Product information PRODUCT DEFINITION Brand SNR d - Internal diameter 17 mm D - External diameter 40 mm B - Bearing/Inner ring width 12 mm d1 - External diameter inner ring 24,1 mm D1 - Inner diameter outer ring 34,9 mm rs - Min fillet radius 0,6 mm Radial clearance class C3 Mass 0,068 kg
PRODUCT PERFORMANCE C - Dynamic load 10,1 kN C0 - Static load 4,75 kN Cu - Fatigue limit load 0,22 kN f0 - Coefficient 13.1 N lim - Mechanical Limit Speed 26000 tr/min Tmin - Min operating temperature -50 °C Tmax - Max operating temperature 120 °C
BEARING FREQUENCIES BPFO - Over rolling frequency on outer ring (60 rpm) 3,053 Hz BPFI - Over rolling frequency on inner (60 rpm) 4,947 Hz BSF - Over rolling frequency on rolling element (60 rpm) 3,987 Hz BRF - Rotational frequency – rolling element (60 rpm) 1,994 Hz FTF - Rotational frequency - cage (60 rpm) 0,382 Hz

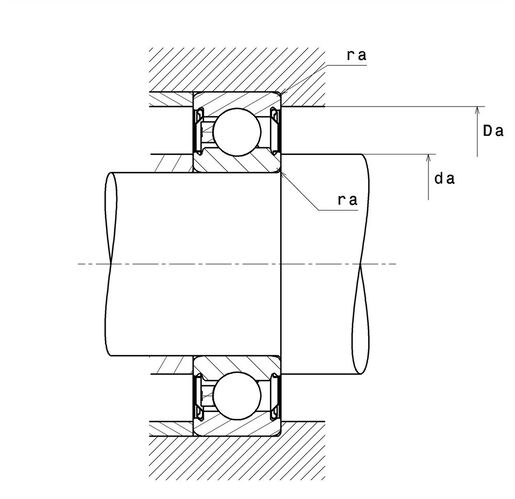

ABUTMENT da min - Min shoulder diameter IR 21 mm da max - Max shoulder diameter IR 24,1 mm Da max - Max shoulder diameter OR 36 mm ra max - Max shaft & housing fillet radius 0,6 mm
