6206G15C4 - SNR

6206G15C4

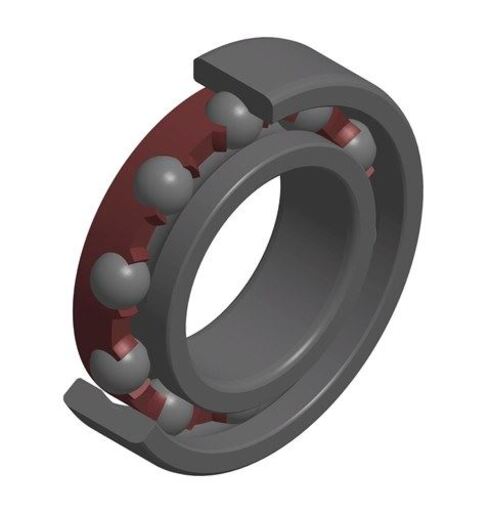

Deep groove ball bearing, radial contact, polyamide cage, open

The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options: sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.

Downloads

CAD file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

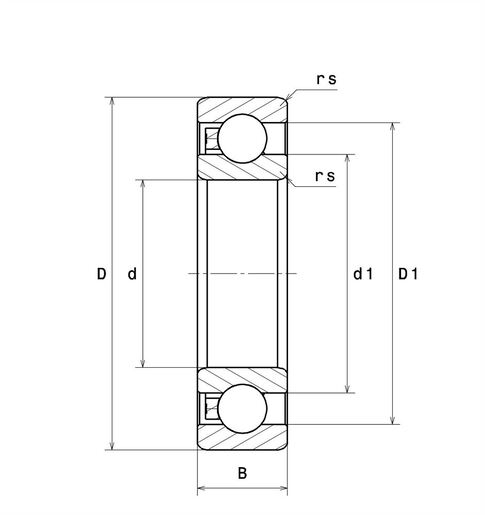

PRODUCT DIMENSIONS

Internal diameter (d) 30 mm
External diameter (D) 62 mm
Bearing/Inner ring width (B) 16 mm
External diameter inner ring d1 37,9 mm
Inner diameter outer ring (D1) 55,1 mm
Min fillet radius (rs) 1 mm
Radial clearance class C4
Mass 0,199 kg
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load (C) 19,5 kN
Static load (C0) 11,3 kN
Fatigue limit load (Cu) 0,51 kN
Coefficient f0 13.8
Reference thermal speed (Nref) 12000 tr/min
Mechanical Limit Speed (Nlim) 18000 tr/min
Min operating temperature (Tmin) -20 °C
Max operating temperature (Tmax) 120 °C

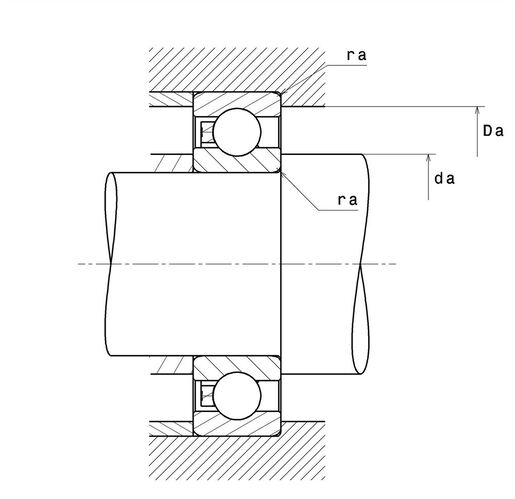

ABUTMENT

Min shoulder diameter IR (da min) 35 mm
Max shoulder diameter OR (Da max) 57 mm
Max shaft & housing fillet radius (ra max) 1 mm
Product classification image
Calcul factors image
