6884 - NTN

6884

The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options: sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

PRODUCT DEFINITION

d - Internal diameter 420 mm
D - External diameter 520 mm
B - Bearing/Inner ring width 46 mm
rs - Min fillet radius 2,1 mm
Radial clearance class CN
Mass 21,6 kg
Brand NTN

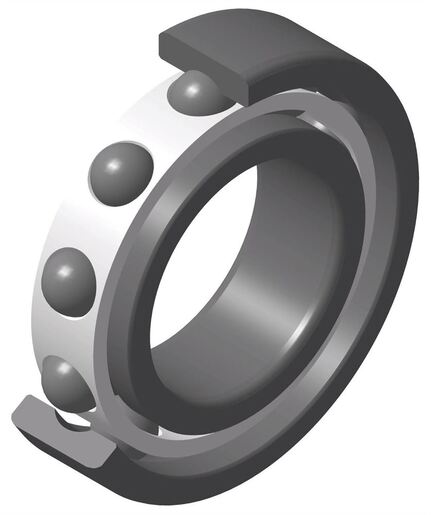

Product classification image

PRODUCT PERFORMANCE

C - Dynamic load 288 kN
C0 - Static load 405 kN
Cu - Fatigue limit load 12,4 kN
f0 - Coefficient 16.1
Nlim - Oil lubrication limit speed 1200 tr/min
Nlim - Grease lubrication limit speed 1000 tr/min
Tmin - Min operating temperature -40 °C
Tmax - Max operating temperature 120 °C

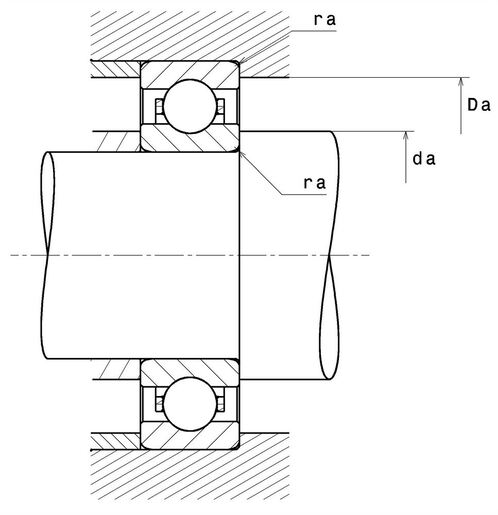

ABUTMENT

da min - Min shoulder diameter IR 431 mm
Da max - Max shoulder diameter OR 509 mm
ra max - Max shaft & housing fillet radius 2 mm
Product classification image
Calcul factors image
