AHX3026 - SNR

AHX3026

Downloads

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

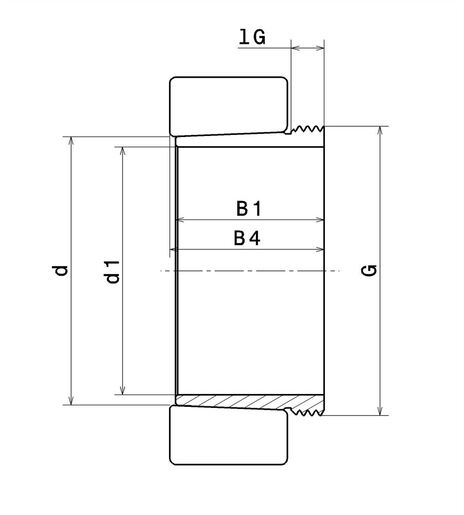

PRODUCT DIMENSIONS

Sleeve bore diameter (d1) 125 mm
Internal diameter (d) 130 mm
Sleeve length (B1) 67 mm
Overall dismantling length (B4) 71 mm
Thread designation (G) M140X2
Sleeve thread length (lG) 14 mm
Designation of the associated nut KM28
Designation of the associated blocking device MB24
Designation of the nut KM24
Associated bearing 23026
Designation of the associated hydraulic nut HMV28 EBF
Bore Tapered 1:12
Mass 0,93 kg
Brand SNR
Product classification image
