AOH24044 - SNR

AOH24044

Downloads

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

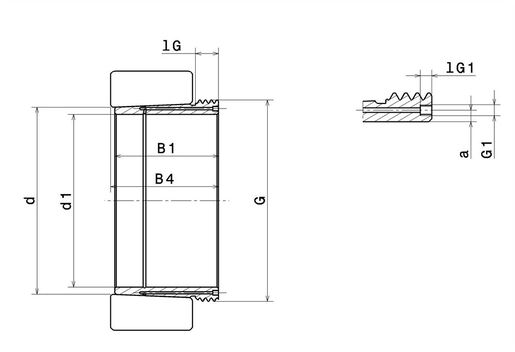

PRODUCT DIMENSIONS

Sleeve bore diameter (d1) 200 mm
Internal diameter (d) 220 mm
Sleeve length (B1) 138 mm
Overall dismantling length (B4) 152 mm
Thread designation (G) Tr230X4
Sleeve thread length (lG) 20 mm
Designation of tapping holes for oil injection (G1) G1/8
Tapping length of oil injection holes (lG1) 12 mm
Distance to bore of oil injection hole (a) 6,5 mm
Designation of the associated nut HM46T
Designation of the associated blocking device MB40
Designation of the nut KM40
Associated bearing 24044
Designation of the associated hydraulic nut HMV46 EBF
Bore Tapered 1:30
Mass 8,25 kg
Brand SNR
