AOH24164 - SNR

AOH24164

Downloads

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

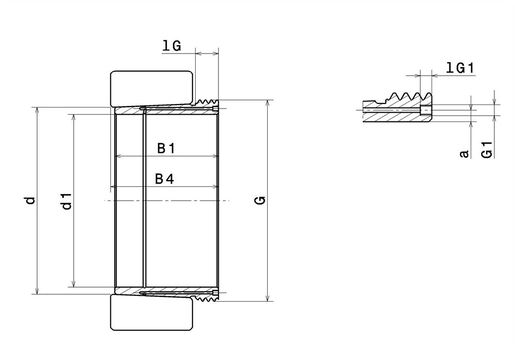

PRODUCT DIMENSIONS

Sleeve bore diameter (d1) 300 mm
Internal diameter (d) 320 mm
Sleeve length (B1) 242 mm
Overall dismantling length (B4) 260 mm
Thread designation (G) Tr340X5
Sleeve thread length (lG) 24 mm
Designation of tapping holes for oil injection (G1) G1/4
Tapping length of oil injection holes (lG1) 15 mm
Distance to bore of oil injection hole (a) 9 mm
Designation of the associated nut HM3168
Designation of the associated blocking device MS3060
Designation of the nut HM3060
Associated bearing 24164
Designation of the associated hydraulic nut HMV68 EBF
Bore Tapered 1:30
Mass 21,4 kg
Brand SNR
