AOH3060 - SNR

AOH3060

Downloads

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

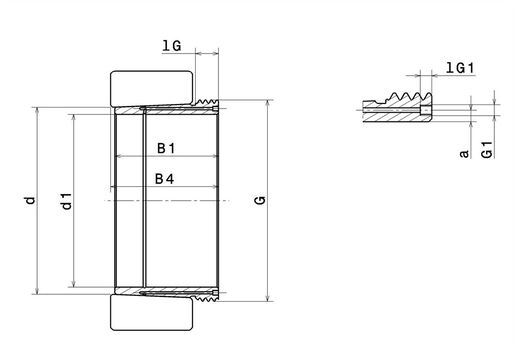

PRODUCT DIMENSIONS

Sleeve bore diameter (d1) 280 mm
Internal diameter (d) 300 mm
Sleeve length (B1) 145 mm
Overall dismantling length (B4) 153 mm
Thread designation (G) Tr320X5
Sleeve thread length (lG) 26 mm
Designation of tapping holes for oil injection (G1) G1/4
Tapping length of oil injection holes (lG1) 15 mm
Distance to bore of oil injection hole (a) 9 mm
Designation of the associated nut HM3064
Designation of the associated blocking device MB56
Designation of the nut HM56T
Associated bearing 23060
Designation of the associated hydraulic nut HMV64 EBF
Bore Tapered 1:12
Mass 14,4 kg
Brand SNR
