Withdrawal sleeve

AOH3080G - SNR

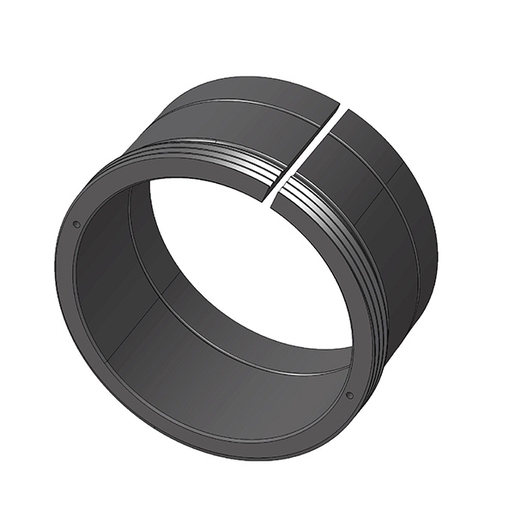

AOH3080G

Documentation

Product information

PRODUCT DEFINITION
BrandSNR

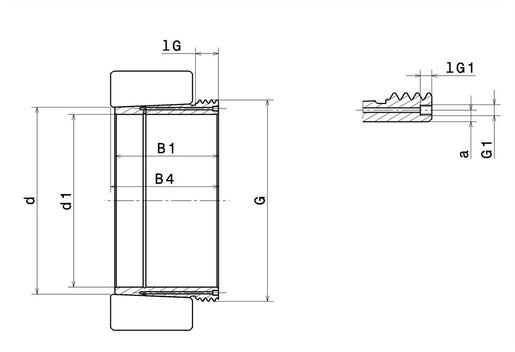

d1 - Sleeve bore diameter380 mm
d - Internal diameter400 mm
B1 - Sleeve length183 mm
B4 - Overall dismantling length193 mm
G - Thread designationTr420X5
lG - Sleeve thread length33 mm
G1 - Designation of tapping holes for oil injectionG1/4
lG1 - Tapping length of oil injection holes15 mm
a - Distance to bore of oil injection hole9 mm
Mass26,1 kg
undefined
TECHNICAL CHARACTERISTICS
Associated bearing23080
BoreConique 1:12
CROSS SELLING
Designation of the associated nutHM3084
Designation of the associated blocking deviceMS3076
Designation of the nutHM3076
Designation of the associated hydraulic nutHMV84 EBF
