AOH3168G - SNR

AOH3168G

Downloads

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

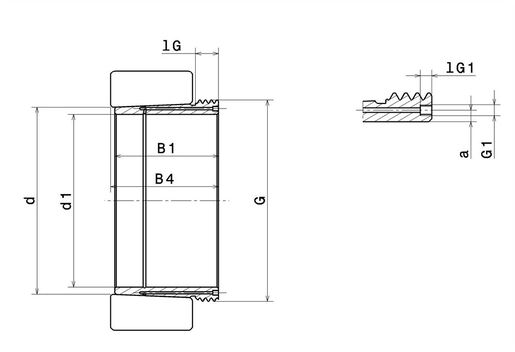

PRODUCT DIMENSIONS

Sleeve bore diameter (d1) 320 mm
Internal diameter (d) 340 mm
Sleeve length (B1) 225 mm
Overall dismantling length (B4) 234 mm
Thread designation (G) Tr360X5
Sleeve thread length (lG) 33 mm
Designation of tapping holes for oil injection (G1) G1/4
Tapping length of oil injection holes (lG1) 15 mm
Distance to bore of oil injection hole (a) 9 mm
Designation of the associated nut HM3172
Designation of the associated blocking device MS3064
Designation of the nut HM3064
Associated bearing 23168
Designation of the associated hydraulic nut HMV72 EBF
Bore Tapered 1:12
Mass 27,6 kg
Brand SNR
