BBE40UU-OP - SNR

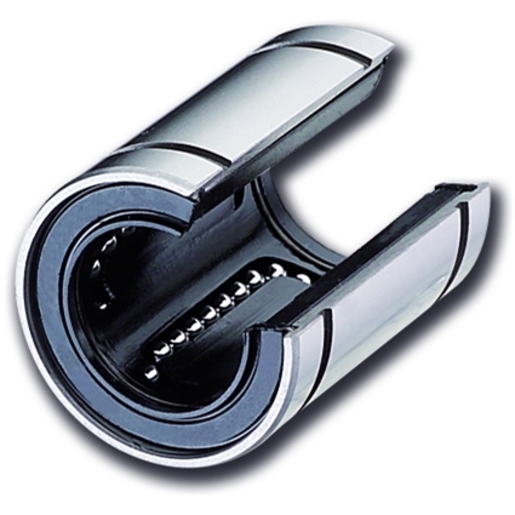

BBE40UU-OP

With open ball bushings, supported and hardened steel shafts are used to reduce deflection for precise and low-friction linear movements.

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
PRODUCT DEFINITION
Design typeBBE-OP
Ball bushings categoryStandard ball bushings, open
BrandSNR
StandardISO dimensions
Number of seals2
Material outer cylinder or steel segments100Cr6
Material CagePA
Initial greasingno
d - Internal diameter40 mm
d - Internal diameter tolerance0,013/-0,002
D - External diameter62 mm
D - External diameter tolerance0/-0,013
L - Length80 mm
L - Length tolerance0/-0,3
L160,6 mm
L1 tolerance0/-0,3
D1 - Diameter59 mm
L22,15 mm
E16,8 mm
Alpha50 °
Number of ball rows5
Mass0,665 kg
Product classification image
PRODUCT PERFORMANCE
Cmin2,357 kN
Cmax2,357 kN
C0min4,02 kN
C0max4,02 kN
Crev for OP1343.49
C0rev for OP2291.4
Tmin - Min operating temperature-20 °C
Tmax - Max operating temperature80 °C
