BK0810CT - NTN

BK0810CT

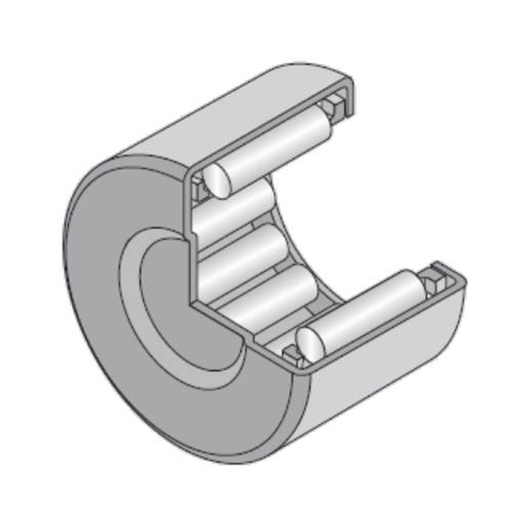

Needle roller bearing, drawn cup, closed end

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

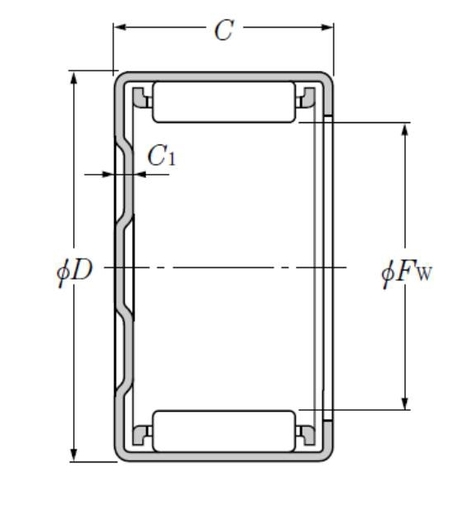

PRODUCT DEFINITION

Fw - Under rollers diameter 8 mm
D - External diameter 12 mm
C - Width of bearing, drawn cup or outer ring 10 mm
C1 - Max drawn cup closed end thickness 1,6 mm
Product classification image

TECHNICAL CHARACTERISTICS

Lubrication hole on outer ring No
Inner ring reference IR5X8X12
Mass 0,034 kg
Brand NTN

PRODUCT PERFORMANCE

Cr - Dynamic load rating 3,85 kN
C0r - Static load rating 3,95 kN
Nlim - Grease lubrication limit speed 20000 tr/min
Nlim - Oil lubrication limit speed 30000 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 120 °C
