Driveshaft Kits

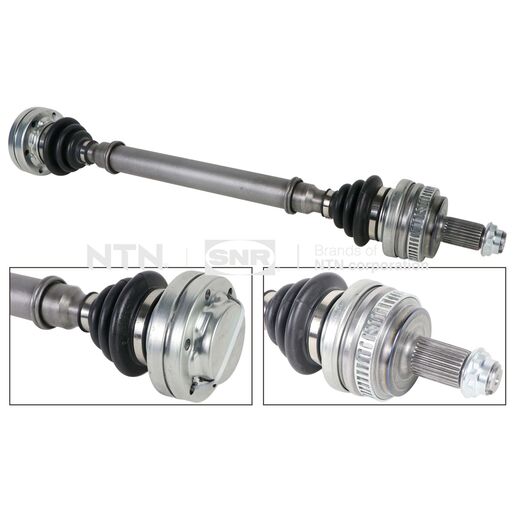

DK50.025 - SNR

DK50.025

Documentation

Product information

CHARACTERISTICS
Fitting positionArrière droit
With ring1
Nb of poles (heavy duty/wheel/cvj)48
External or internal thread definitionM24x1,5
Seal diameter693 mm
number of external splines on the wheel side27
Diameter ball joint on the side of the wheel88 mm
Length 1664 mm
Diameter of the ball joint, gearbox side96 mm
New partOui
Weight6,817 kg

OE Equivalents

ManufacturerReferenceBMW33217547070BMW33217547072BMW33217553562BMW33217561792

Automotive Compatibility

BrandModelGenerationDatePositionLocationBMW1112/2005 => 05/2011RearRightBMW1 SERIES1 SERIES12/2005 => RearRightBMW1 SERIES1 SERIES12/2005 => Train arrièreDroitBMW3312/2005 => 12/2005RearRightBMW3 Series3 Series02/2005 => 01/2012Train arrièreRightBMW3 Series3 Series12/2005 => 04/2012RearRightBMWSERIE 1SERIE 1 I => Rear-BMWSERIE 1SERIE 1 I => RearLeftBMWSERIE 1SERIE 1 I12/2005 => RearRightBMWSERIE 3SERIE 3 IV12/2005 => 12/2005RearRightBMWSERIE 3SERIE 3 V => Rear-BMWSERIE 3SERIE 3 V => RearLeft,RightBMWSERIE 3SERIE 3 V => RearRightBMWSERIE 3SERIE 3 V => RearRight,LeftBMWSERIE 3SERIE 3 V12/2005 => -RightBMW (BRILLIANCE)3 SERIES3 SERIES12/2005 => RearRight
