Driveshaft Kits

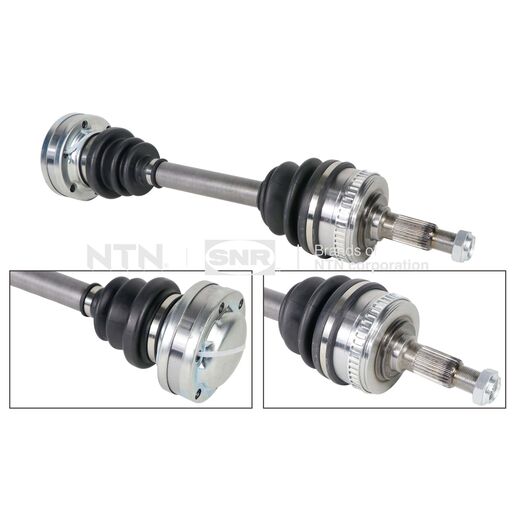

DK51.008 - SNR

DK51.008
Reference DK51.008

Documentation

Product information

CHARACTERISTICS
With ring1
number of external splines on the wheel side27
Fitting positionAvant droit
Nb of poles (heavy duty/wheel/cvj)48
Seal diameter598 mm
Length 1531 mm
Diameter ball joint on the side of the wheel1105 mm
Diameter of the ball joint, gearbox side1104 mm
External or internal thread definitionM22x1,5
New partOui
Weight8,365 kg

OE Equivalents

ManufacturerReferenceMercedes6383340534Mercedes6383340634Mercedes6383341634Mercedes6383341734MercedesA6383340534MercedesA6383340634MercedesA6383341634MercedesA6383341734

Automotive Compatibility

BrandModelGenerationDatePositionLocationMERCEDES-BENZV-CLASS VanV-CLASS Van => FrontLeft,RightMERCEDES-BENZV-CLASS VanV-CLASS Van => FrontRight,LeftMercedesCLASSE VCLASSE V I => -Left,RightMercedesCLASSE VCLASSE V I => FrontLeft,RightMercedesCLASSE VCLASSE V I09/1996 => 11/2002FrontRight,LeftMercedesVITOVITO I => FrontLeft,RightMercedesVITOVITO I => FrontRight,Left
