Driveshaft Kits

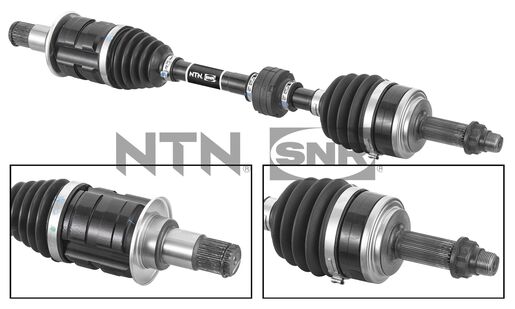

DK69.005 - SNR

DK69.005
Reference DK69.005

This kit contains the following reference(s)

  • OBK69.001
  • IBK69.003
  • Outboard joint kits

Documentation

Product information

CHARACTERISTICS
External or internal thread definitionM22x1
Fitting positionAvant gauche
Number of external splines on the gearbox side30
number of external splines on the wheel side26
number of internal splines on the wheel side32
Version8 balls
Seal diameter61 mm
Diameter ball joint on the side of the wheel81 mm
Length 1707 mm
New partOui
Weight7,941 kg

OE Equivalents

ManufacturerReferenceToyota43420F4050

Automotive Compatibility

BrandModelGenerationDatePositionLocationToyotaC-HRC-HR => Train avantGaucheToyotaC-HRC-HR I09/2016 => FrontLeft
