ESF205T20COE - SNR

ESF205T20COE

Grey cast housing, radial insert ball bearing with eccentric locking collar, single lip seal, for high-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - ES205G2T20 - SCOE205-25 - F205N
PLEASE LOGIN to add products to your basket
Contact us
Specs

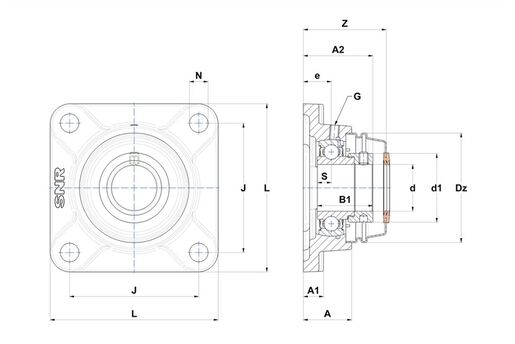

PRODUCT DEFINITION

A - Housing height 27 mm
A1 - Housing foot height / flange height 13 mm
A2 - Total height from mounting surface 39,4 mm
B - Width of Inner Ring 21,4 mm
B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) 30,9 mm
d - Shaft diameter 25 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve 37,4 mm
Dz - Outer diameter of cover 60 mm
e - Distance mounting surface to bearing center 16 mm
G - Grease fitting M6x1
J - Mounting holes distance 70 mm
L - Housing width / diameter 95 mm
N - Mounting hole dimension 12 mm
S - Dist. cent. of raceway to face IR on side opp. lock. device 7,5 mm
Z - Width over covers 47,8 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 14 kN
C0 - Static load rating 7,88 kN
Operating temperature min. -20 °C
Operating temperature max. 200 °C

OTHER FEATURES

Mass 0,812 kg
Recommended tightening torque for set screw 5,5 N-m
