ESF207-23 - SNR

ESF207-23

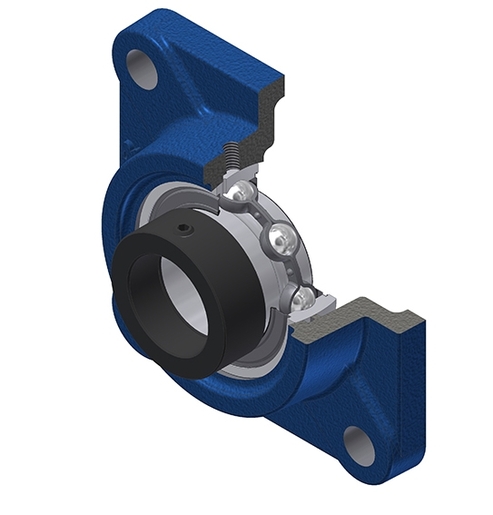

Grey cast housing, radial insert ball bearing with eccentric locking collar, single lip seal

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - ES207-23G2 - F207
PLEASE LOGIN to add products to your basket
Contact us
Specs

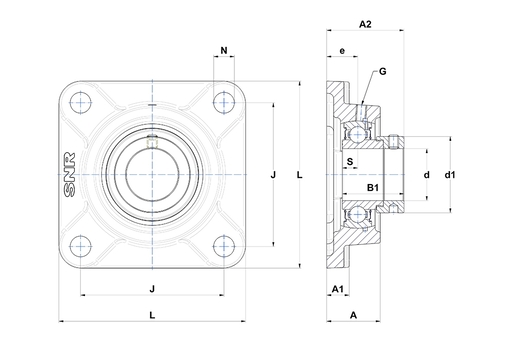

PRODUCT DEFINITION

A - Housing height 34 mm
A1 - Housing foot height / flange height 15 mm
A2 - Total height from mounting surface 48,4 mm
B - Width of Inner Ring 25,4 mm
B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) 38,9 mm
d - Shaft diameter 36,513 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve 51,1 mm
e - Distance mounting surface to bearing center 19 mm
G - Grease fitting M6x1
J - Mounting holes distance 92 mm
L - Housing width / diameter 117 mm
N - Mounting hole dimension 14 mm
S - Dist. cent. of raceway to face IR on side opp. lock. device 9,5 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 25,7 kN
C0 - Static load rating 15,2 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 1,51 kg
Recommended tightening torque for set screw 8 N-m
