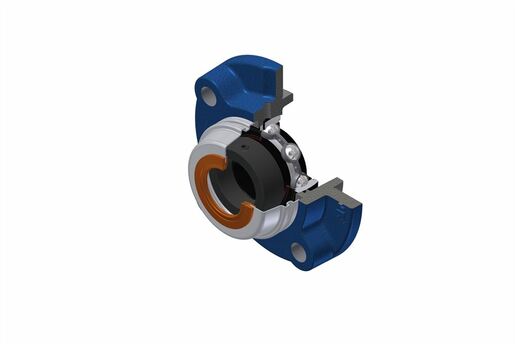

Grey cast housing, radial insert ball bearing with eccentric locking collar, single lip seal, for high-temp. applications
Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.
Technical datasheet
Specs

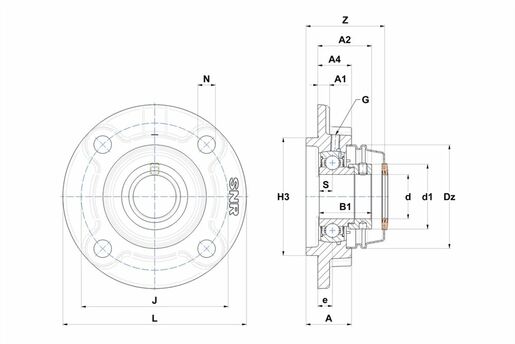

PRODUCT DIMENSIONS | |
|---|---|
| Housing height (A) | 25,5 mm |
| Housing foot height / flange height (A1) | 6 mm |
| Total height (Housing + Insert) from mouting surface (A2) | 32,1 mm |
| Housing height from mounting surface (A4) | 20,5 mm |
| Width of IR (B) | 19,1 mm |
| Overall width IR incl. eccent. locking collar/adapt. sleeve(B1) | 28,6 mm |
| Shaft dia (d) | 12 mm |
| Outer dia of eccent. Lock. collar / nut of adapter sleeve (d1) | 27,2 mm |
| Outer dia of cover (Dz) | 46 mm |
| Distance mounting surface - bearing center (e) | 10 mm |
| Grease fitting (G) | M6x1 |
| Centering dia (H3) | 62 mm |
| Mounting hole distance (J) | 78 mm |
| Housing width / dia (L) | 100 mm |
| Mounting hole dimension (N) | 12 mm |
| Dist. cent. of raceway to face IR on side opp. lock. device (S) | 6,5 mm |
| width over covers | 41,2 mm |
| Brand | SNR |
PRODUCT PERFORMANCE | |
|---|---|
| Dynamic load rating (C) | 9,55 kN |
| Static load rating (C0) | 4,78 kN |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 200 °C |
OTHER FEATURES | |
|---|---|
| Mass | 0,53 kg |
| Recommended tightening torque for set screw [Nm] | 5,5 N-m |
