ESFE211-32T20 - SNR

ESFE211-32T20

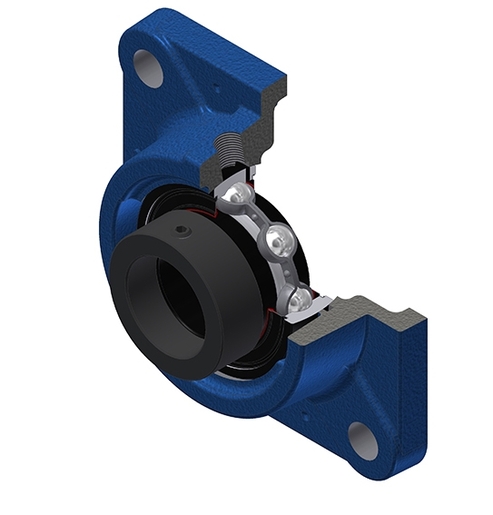

Grey cast housing, radial insert ball bearing with eccentric locking collar, single lip seal, for high-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - ES211-32G2T20 - FE211
PLEASE LOGIN to add products to your basket
Contact us
PRODUCT DEFINITION
BrandSNR

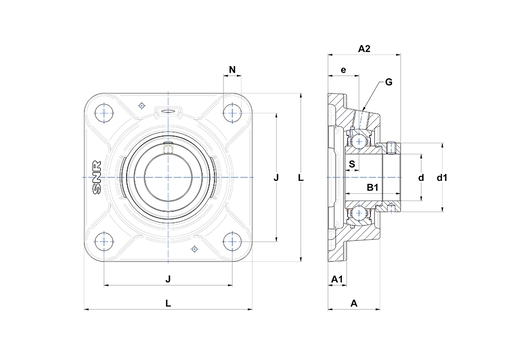

A - Housing height48,5 mm
A1 - Housing foot height / flange height15 mm
A2 - Total height from mounting surface67,4 mm
B - Width of Inner Ring32,5 mm
B1 - Overall width Inner Ring48,4 mm
d - Shaft diameter50,8 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve74,5 mm
e - Distance mounting surface to bearing center31 mm
G - Grease fittingR1/8"
J - Mounting holes distance130 mm
L - Housing width / diameter162 mm
N - Mounting hole dimension18 mm
S - Distance front side/bearing centre12 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating43,55 kN
C0 - Static load rating29,2 kN
Operating temperature min.-20 °C
Operating temperature max.200 °C
OTHER FEATURES
Mass3,72 kg
Recommended tightening torque for set screw16,8 N-m
