ESFL206-19T20 - SNR

ESFL206-19T20

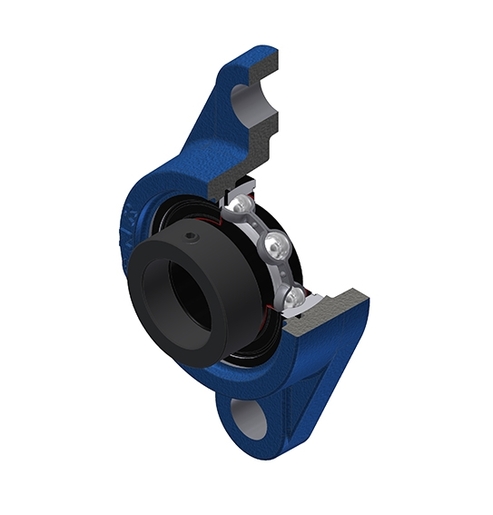

Grey cast housing, radial insert ball bearing with eccentric locking collar, single lip seal, for high-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - ES206-19G2T20 - FL206
PLEASE LOGIN to add products to your basket
Contact us
Specs

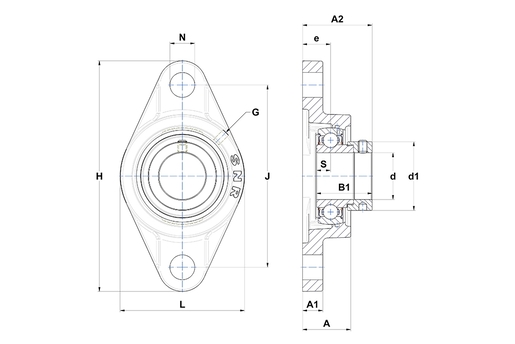

PRODUCT DIMENSIONS

Housing height (A) 31 mm
Housing foot height / flange height (A1) 13 mm
Total height (Housing + Insert) from mouting surface (A2) 44,7 mm
Width of IR (B) 23,8 mm
Overall width IR incl. eccent. locking collar/adapt. sleeve(B1) 35,7 mm
Shaft dia (d) 30,163 mm
Outer dia of eccent. Lock. collar / nut of adapter sleeve (d1) 44,1 mm
Distance mounting surface - bearing center (e) 18 mm
Grease fitting (G) M6x1
Housing length, width or diameter (H) 148 mm
Mounting hole distance (J) 117 mm
Housing width / dia (L) 80 mm
Mounting hole dimension (N) 16 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 9 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 19,5 kN
Static load rating (C0) 11,2 kN
Operating temperature min. -20 °C
Operating temperature max. 200 °C

OTHER FEATURES

Mass 0,88 kg
Recommended tightening torque for set screw [Nm] 8 N-m
