ESFLE209T04COE - SNR

ESFLE209T04COE

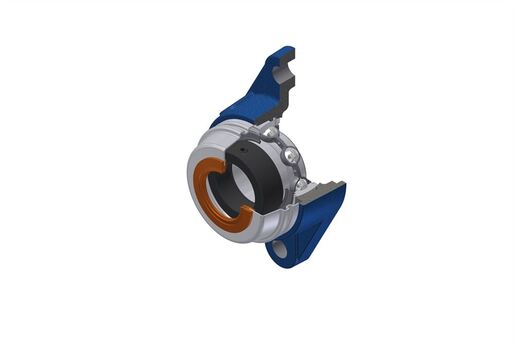

Grey cast housing, radial insert ball bearing with eccentric locking collar, single lip seal, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - ES209G2T04 - SCOE209-45 - FLE209N
PLEASE LOGIN to add products to your basket
Contact us
Specs

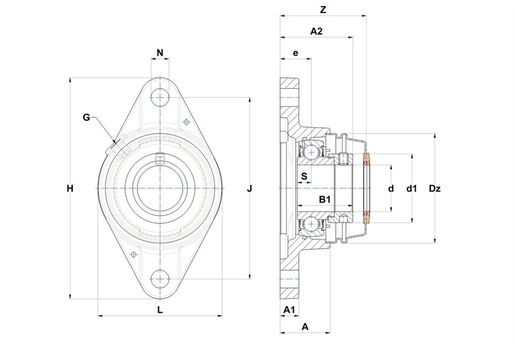

PRODUCT DIMENSIONS

Housing height (A) 37,5 mm
Housing foot height / flange height (A1) 13 mm
Total height (Housing + Insert) from mouting surface (A2) 56,7 mm
Width of IR (B) 30,2 mm
Overall width IR incl. eccent. locking collar/adapt. sleeve(B1) 43,7 mm
Shaft dia (d) 45 mm
Outer dia of eccent. Lock. collar / nut of adapter sleeve (d1) 62 mm
Outer dia of cover (Dz) 95 mm
Distance mounting surface - bearing center (e) 24 mm
Grease fitting (G) R1/8"
Housing length, width or diameter (H) 180 mm
Mounting hole distance (J) 148,5 mm
Housing width / dia (L) 111 mm
Mounting hole dimension (N) 14 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 11 mm
width over covers 64,8 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 31,85 kN
Static load rating (C0) 20,8 kN
Operating temperature min. -40 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 1,878 kg
Recommended tightening torque for set screw [Nm] 11,5 N-m
