ESP205 - SNR

ESP205

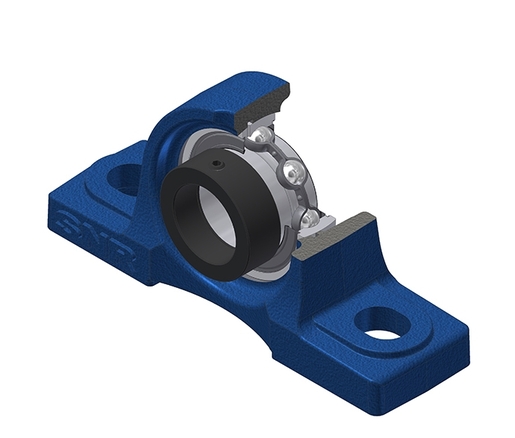

Grey cast housing, radial insert ball bearing with eccentric locking collar, single lip seal

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

3D file

Technical datasheet

KitThis kit contains the following reference(s)- ES205G2- P205
PLEASE LOGIN to add products to your basket
Contact us

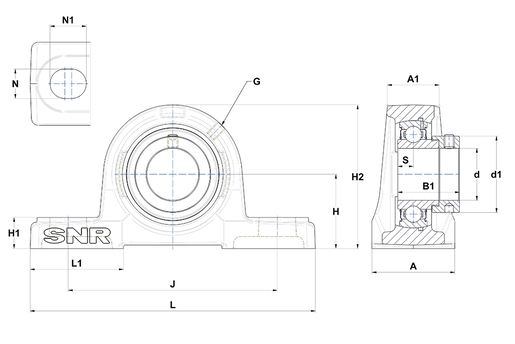

PRODUCT DEFINITION
BrandSNR
A - Housing width38 mm
A1 - Housing top width26 mm
B - Width of Inner Ring21,4 mm
d - Shaft diameter25 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve37,4 mm
G - Grease fittingM6x1
H - Distance mounting base to centerline spheric. seating diam.36,5 mm
H1 - Housing foot height16 mm
H2 - Housing height70 mm
J - Mounting holes distance105 mm
L - Housing length140 mm
L1 - Housing foot length42 mm
N - Mounting hole dimension13 mm
N1 - Mounting hole length19 mm
S - Distance front side/bearing centre7,5 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating14 kN
C0 - Static load rating7,88 kN
Operating temperature min.-20 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass0,79 kg
Recommended tightening torque for set screw5,5 N-m
