ESP206T20COE - SNR

ESP206T20COE

Grey cast housing, radial insert ball bearing with eccentric locking collar, single lip seal, for high-temp. applications.

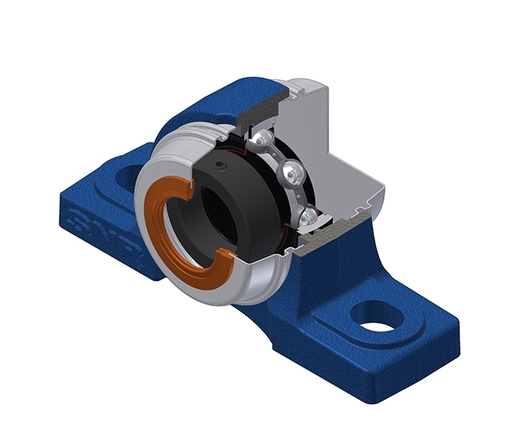

In the figure, bearing units are presented with one open and one closed cover. The product you have chosen is equipped with two open covers.

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - ES206G2T20 - SCOE206-30 - P206N
PLEASE LOGIN to add products to your basket
Contact us

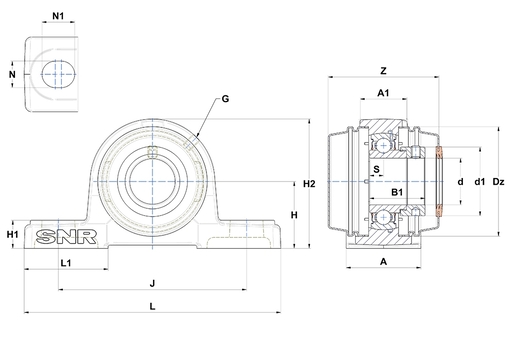

PRODUCT DEFINITION
BrandSNR
A - Housing width48 mm
A1 - Housing top width30 mm
B - Width of Inner Ring23,8 mm
d - Shaft diameter30 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve44,1 mm
Dz - Outer diameter of cover70 mm
G - Grease fittingM6x1
H - Distance mounting base to centerline spheric. seating diam.42,9 mm
H1 - Housing foot height18 mm
H2 - Housing height83 mm
J - Mounting holes distance121 mm
L - Housing length165 mm
L1 - Housing foot length54 mm
N - Mounting hole dimension17 mm
N1 - Mounting hole length21 mm
S - Distance front side/bearing centre9 mm
Z - Width over covers71,2 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating19,5 kN
C0 - Static load rating11,2 kN
Operating temperature min.-20 °C
Operating temperature max.200 °C
OTHER FEATURES
Mass1,438 kg
Recommended tightening torque for set screw11,5 N-m
