EX215G2L3 - SNR

EX215G2L3

Spherical outer diameter, fixing by eccentric locking collar, triple lip seal

Bearing inserts for bearing units, are proposed with different locking devices for easy assembly.

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

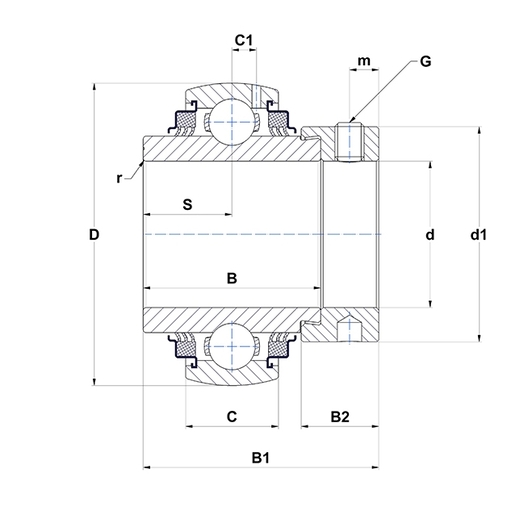

PRODUCT DEFINITION

B - Width of Inner Ring 74,6 mm
B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) 92,1 mm
B2 - Width of eccent. Lock. collar/nut+washer of adapter sleeve 23,9 mm
C - Width of Outer Ring 30 mm
C1 - Distance center of OR to center of lubrication zone 9 mm
d - Shaft diameter 75 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve 102 mm
D - Outer diameter of OR 130 mm
G - Set screw size M10x1,25
m - Distance to set screw 8,5 mm
r - Radius Inner Ring 2
S - Dist. cent. of raceway to face IR on side opp. lock. device 37,3 mm
SW - Wrench size 5 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 66 kN
C0 - Static load rating 49,5 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 2,84 kg
Recommended tightening torque for set screw 22 N-m
