EXC209-26L4 - SNR

EXC209-26L4

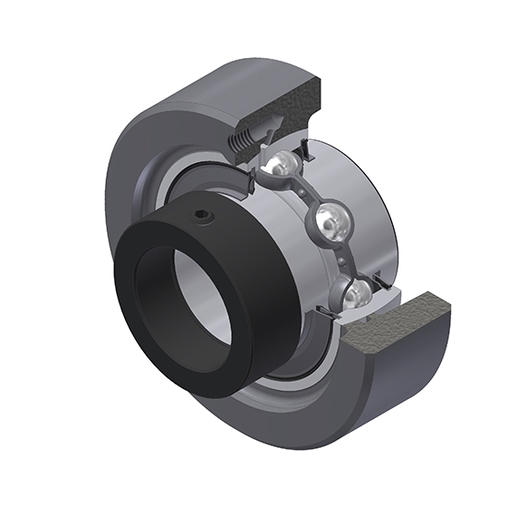

Grey cast housing, radial insert ball bearing with eccentric locking collar, L4 sealing system

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - EX209-26G2L4 - C209
PLEASE LOGIN to add products to your basket
Contact us
Specs

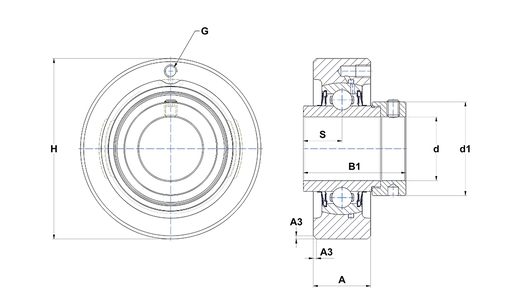

PRODUCT DIMENSIONS

Housing width (A) 31 mm
Centering depth / chamfer dimension (A3) 2 mm
Total height - frame + insert (A5) 34,9 mm
Width of IR (B) 42,8 mm
Overall width IR incl. eccent. locking collar/adapt. sleeve(B1) 56,3 mm
Shaft dia (d) 41,275 mm
Outer dia of eccent. Lock. collar / nut of adapter sleeve (d1) 62 mm
Grease fitting (G) M6x1
Housing length, width or diameter (H) 110 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 21,4 mm
Wrench size (SW) 3,969 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 31,85 kN
Static load rating (C0) 20,8 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 1,76 kg
Recommended tightening torque for set screw [Nm] 8 N-m
