EXF207T04 - SNR

EXF207T04

Grey cast housing, radial insert ball bearing with eccentric locking collar, seal with slinger, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

3D file

Technical datasheet

KitThis kit contains the following reference(s) - EX207G2T04 - F207
PLEASE LOGIN to add products to your basket
Contact us
Specs

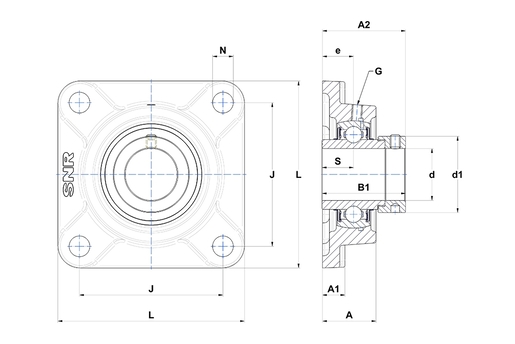

PRODUCT DEFINITION

A - Housing height 34 mm
A1 - Housing foot height / flange height 15 mm
A2 - Total height from mounting surface 51,3 mm
B - Width of Inner Ring 37,6 mm
B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) 51,1 mm
d - Shaft diameter 35 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve 51,1 mm
e - Distance mounting surface to bearing center 19 mm
G - Grease fitting M6x1
J - Mounting holes distance 92 mm
L - Housing width / diameter 117 mm
N - Mounting hole dimension 14 mm
S - Dist. cent. of raceway to face IR on side opp. lock. device 18,8 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 25,7 kN
C0 - Static load rating 15,2 kN
Operating temperature min. -40 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 1,63 kg
Recommended tightening torque for set screw 11,5 N-m
