EXF210 - SNR

EXF210

Grey cast housing, radial insert ball bearing with eccentric locking collar, seal with slinger

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

3D file

Technical datasheet

KitThis kit contains the following reference(s) - EX210G2 - F210
PLEASE LOGIN to add products to your basket
Contact us
Specs

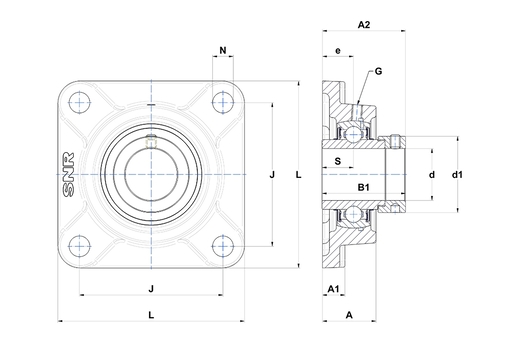

PRODUCT DEFINITION

A - Housing height 40 mm
A1 - Housing foot height / flange height 16 mm
A2 - Total height from mounting surface 60,1 mm
B - Width of Inner Ring 49,2 mm
B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) 62,7 mm
d - Shaft diameter 50 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve 67,2 mm
e - Distance mounting surface to bearing center 22 mm
G - Grease fitting M6x1
J - Mounting holes distance 111 mm
L - Housing width / diameter 143 mm
N - Mounting hole dimension 16 mm
S - Dist. cent. of raceway to face IR on side opp. lock. device 24,6 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 35,1 kN
C0 - Static load rating 23,2 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 2,71 kg
Recommended tightening torque for set screw 11,5 N-m
