EXFE206-20L3 - SNR

EXFE206-20L3

Grey cast housing, radial insert ball bearing with eccentric locking collar, triple lip seal

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - EX206-20G2L3 - FE206
PLEASE LOGIN to add products to your basket
Contact us
PRODUCT DEFINITION
BrandSNR

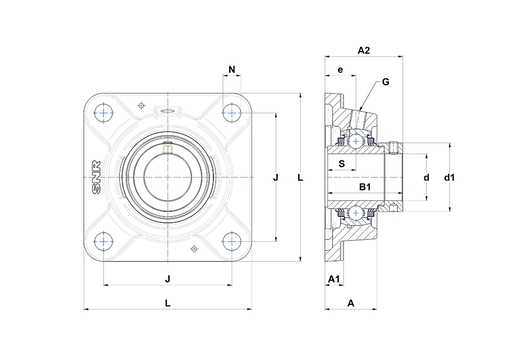

A - Housing height33,5 mm
A1 - Housing foot height / flange height12 mm
A2 - Total height from mounting surface50,1 mm
B - Width of Inner Ring36,4 mm
B1 - Overall width Inner Ring48,3 mm
d - Shaft diameter31,75 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve44,1 mm
e - Distance mounting surface to bearing center20 mm
G - Grease fittingR1/8"
J - Mounting holes distance82,5 mm
L - Housing width / diameter108 mm
N - Mounting hole dimension11,5 mm
S - Distance front side/bearing centre18,2 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating19,5 kN
C0 - Static load rating11,2 kN
Operating temperature min.-20 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass1,22 kg
Recommended tightening torque for set screw8 N-m
