EXFE208-25 - SNR

EXFE208-25

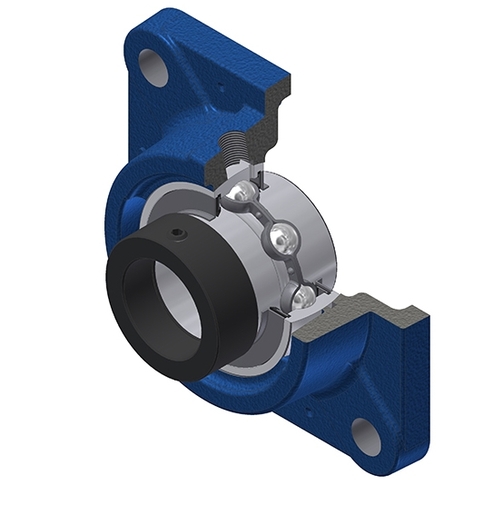

Grey cast housing, radial insert ball bearing with eccentric locking collar, seal with slinger

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - EX208-25G2 - FE208
PLEASE LOGIN to add products to your basket
Contact us

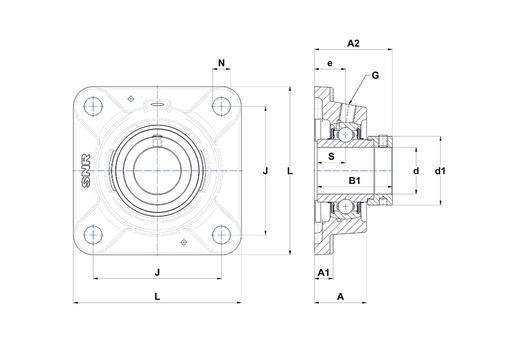

PRODUCT DEFINITION
BrandSNR
A - Housing height39,5 mm
A1 - Housing foot height / flange height13 mm
A2 - Total height from mounting surface58,9 mm
B - Width of Inner Ring42,8 mm
B1 - Overall width Inner Ring56,3 mm
d - Shaft diameter39,688 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve58 mm
e - Distance mounting surface to bearing center24 mm
G - Grease fittingR1/8"
J - Mounting holes distance101,5 mm
L - Housing width / diameter130 mm
N - Mounting hole dimension14 mm
S - Distance front side/bearing centre21,4 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating29,6 kN
C0 - Static load rating18,2 kN
Operating temperature min.-20 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass2,23 kg
Recommended tightening torque for set screw8 N-m
