EXFE210-30L3 - SNR

EXFE210-30L3

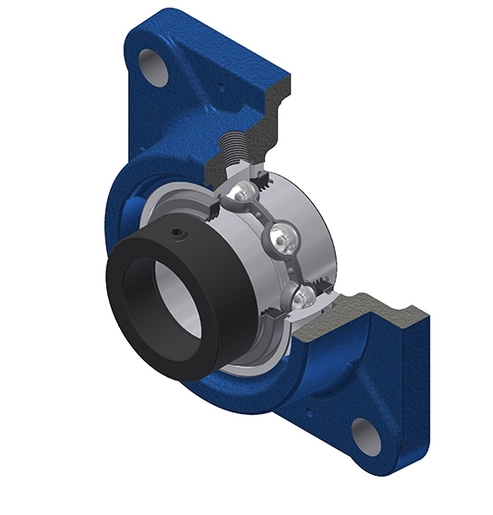

Grey cast housing, radial insert ball bearing with eccentric locking collar, triple lip seal

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - EX210-30G2L3 - FE210
PLEASE LOGIN to add products to your basket
Contact us
PRODUCT DEFINITION
BrandSNR
A - Housing height44 mm
A1 - Housing foot height / flange height13 mm
A2 - Total height from mounting surface66,1 mm
B - Width of Inner Ring49,2 mm
B1 - Overall width Inner Ring62,7 mm
d - Shaft diameter47,625 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve67,2 mm
e - Distance mounting surface to bearing center28 mm
G - Grease fittingR1/8"
J - Mounting holes distance111 mm
L - Housing width / diameter143 mm
N - Mounting hole dimension18 mm
S - Distance front side/bearing centre24,6 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating35,1 kN
C0 - Static load rating23,2 kN
Operating temperature min.-20 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass2,86 kg
Recommended tightening torque for set screw8 N-m
