EXFE210-30L4 - SNR

EXFE210-30L4

Grey cast housing, radial insert ball bearing with eccentric locking collar, L4 sealing system

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - EX210-30G2L4 - FE210
PLEASE LOGIN to add products to your basket
Contact us
Specs

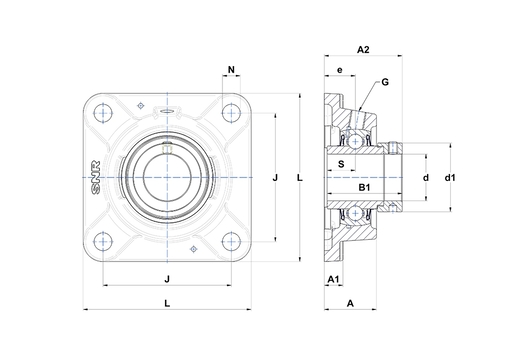

PRODUCT DIMENSIONS

Housing height (A) 44 mm
Housing foot height / flange height (A1) 13 mm
Total height (Housing + Insert) from mouting surface (A2) 66,1 mm
Width of IR (B) 49,2 mm
Overall width IR incl. eccent. locking collar/adapt. sleeve(B1) 62,7 mm
Shaft dia (d) 47,625 mm
Outer dia of eccent. Lock. collar / nut of adapter sleeve (d1) 67,2 mm
Distance mounting surface - bearing center (e) 28 mm
Grease fitting (G) R1/8"
Mounting hole distance (J) 111 mm
Housing width / dia (L) 143 mm
Mounting hole dimension (N) 18 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 24,6 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 35,1 kN
Static load rating (C0) 23,2 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 2,86 kg
Recommended tightening torque for set screw [Nm] 8 N-m
